SICK UM30-212113 — Proximity Sensors

Sick UM30-212113 Ultrasonic Sensor, M30, 60-350 mm, Analogue

MPNUM30-212113

Sick UM30-212113 ultrasonic barrel-style proximity sensor, M30 x 1.5, 60–350 mm detection range, analogue output, 9–30 V supply.

$515.62 – $581.24Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

UM30-212113 — Specifications
ParameterValue
Weight0.18 kgs

Product details

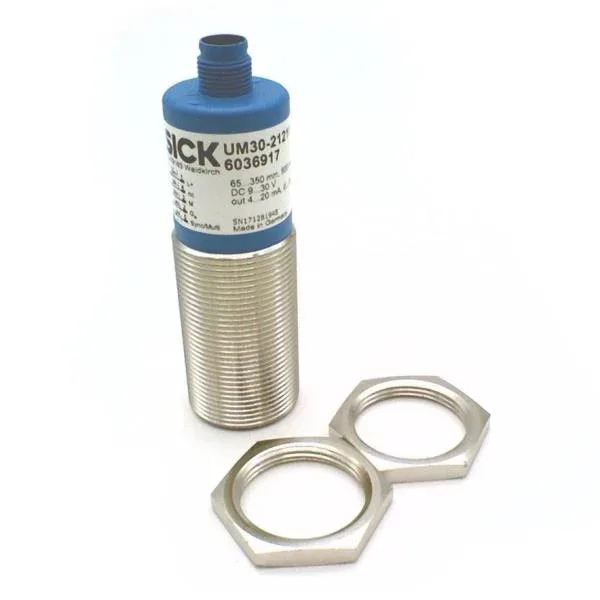

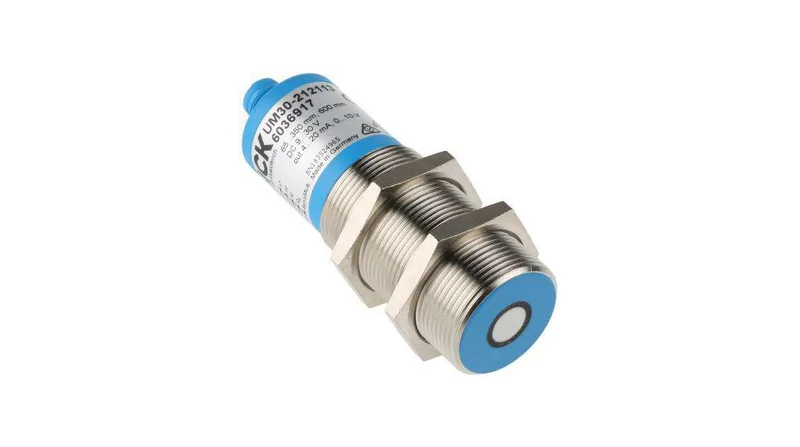

The Sick UM30-212113 is an ultrasonic barrel-style proximity sensor in the M30 x 1.5 housing, with a detection range of 60 to 350 mm and an analogue output. It operates on a 9 to 30 V supply, making it a straightforward fit for standard 24 VDC control loops.

The 60–350 mm detection window is the usable sensing band — objects closer than 60 mm may not be reliably detected, and the maximum range of 350 mm is the far limit under ideal conditions (target size, reflectivity, temperature). For a line-down swap, verify the target distance falls within this span; the analogue output (likely 0–10 V or 4–20 mA, though the listing does not specify the exact scaling) gives a continuous distance signal rather than a simple on/off.

Frequently asked questions

What is the detection range of the UM30-212113?

The detection range is 60 to 350 mm. The sensor provides an analogue output proportional to distance within this band.

MPN
UM30-212113
