SICK VL180-2P42431
MPNVL180-2P42431

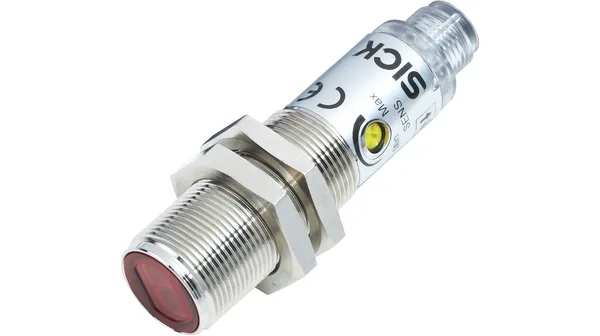

Retro-Reflective Optical Sensor PNP 7m 500us 30V 100mA LED, Visible Red Light Connector, M12, Male IP67 V180-2
$63.50 – $113.31Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | V180-2 |
| Sensor type | Photoelectric Retro-Reflective Sensor |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 7 m |
| Sensing distance, min. | 50 mm |
| Response time | 500 us |
| Light type | LED, Visible Red Light |
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, Male |
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67 |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
| Parameter | Value |
|---|---|
| Length | 70.2 mm |
| Width | 18 mm |
MPN
VL180-2P42431
