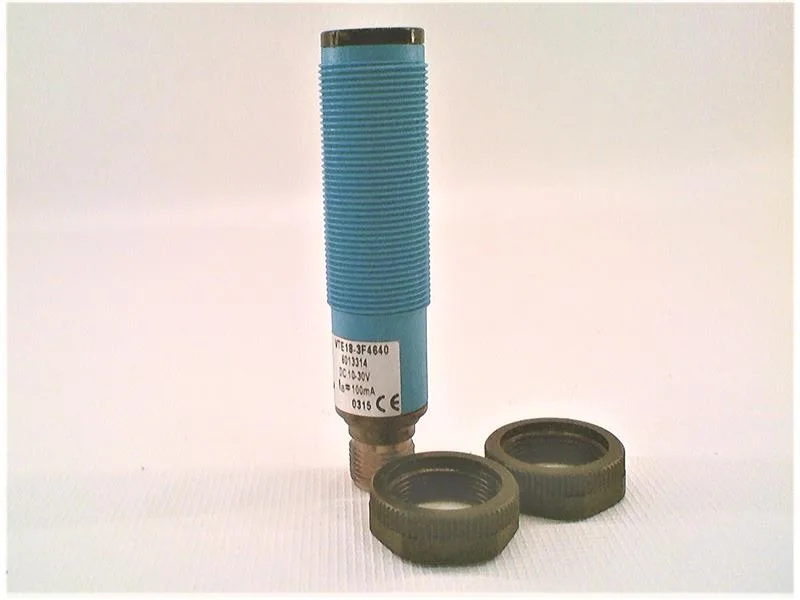

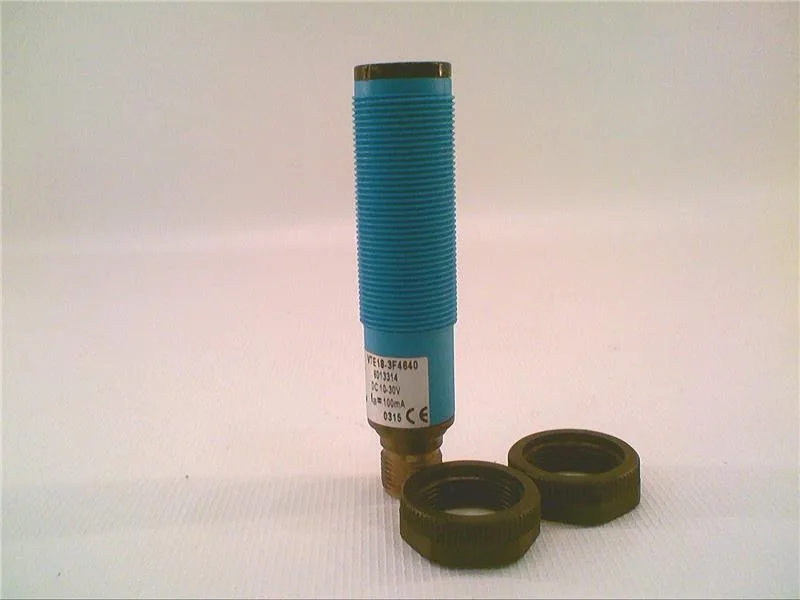

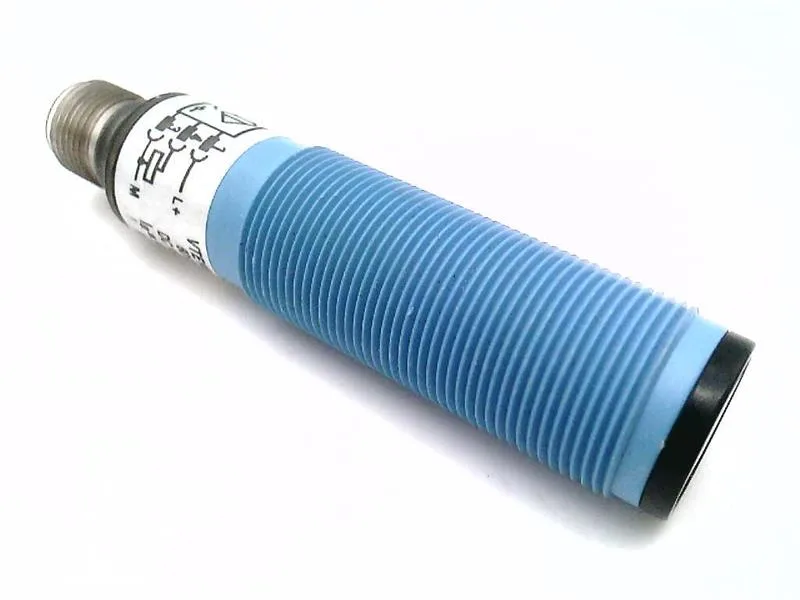

SICK VTE18-3F4640
MPNVTE18-3F4640
Diffuse Reflective Sensor PNP 400mm 2ms 30V 100mA LED, Infrared Connector, M12, Male IP67 V18
$78.74 – $100.90Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|

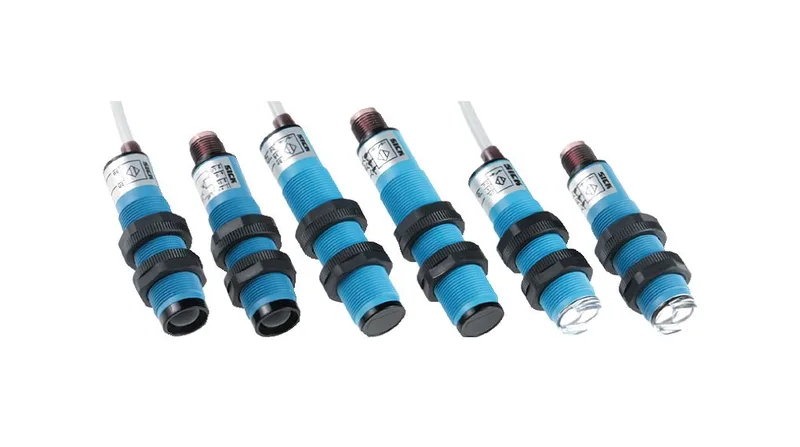

| Series | V18 |
| Sensor type | Photoelectric Proximity Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 400 mm |
| Sensing distance, min. | 5 mm |
| Response time | 2 ms |
| Light type | LED, Infrared |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
Output
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light-ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, Male |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67 |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 70 °C |
Mechanical
| Parameter | Value |
|---|---|
| Length | 78 mm |
| Width | 18 mm |
MPN
VTE18-3F4640
