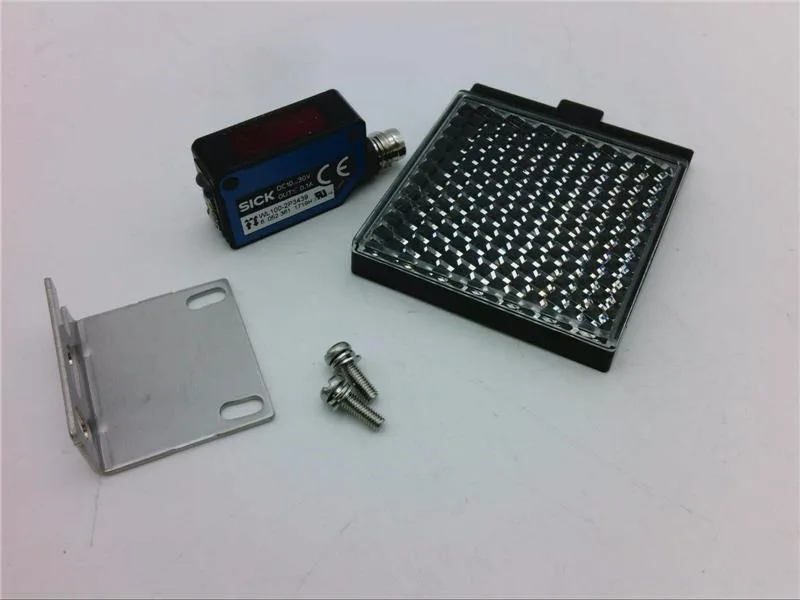

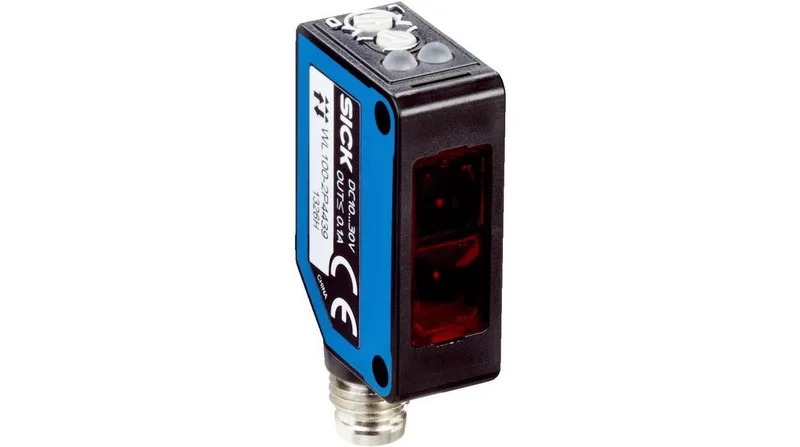

SICK WL100-2P3439
MPNWL100-2P3439
Photoelectric Retro-Reflective Sensor PNP 7.2m 500us 30V 100mA LED, Visible Red Light Connector, M8, 3-Pin IP67 W100-2
$83.82 – $109.07Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | W100-2 |
| Sensor type | Photoelectric Retro-Reflective Sensor |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 7.2 m |
| Sensing distance, min. | 10 mm |
| Response time | 500 us |
| Light type | LED, Visible Red Light |
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
| Parameter | Value |
|---|---|
| Termination type | Connector, M8, 3-Pin |
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67 |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Width | 11 mm |
| Height | 31 mm |
MPN
WL100-2P3439
