SICK WL12-2B560S37 — Photoelectric Sensors

SICK WL12-2B560S37

MPNWL12-2B560S37

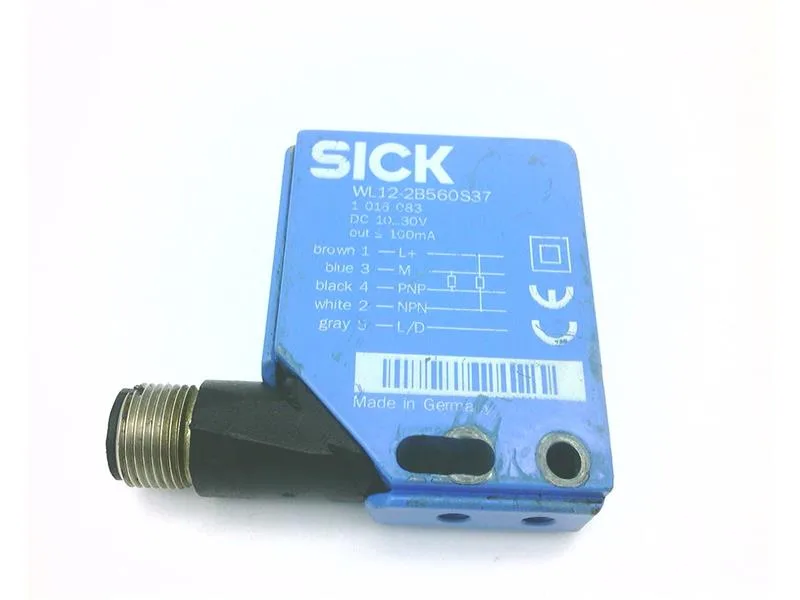

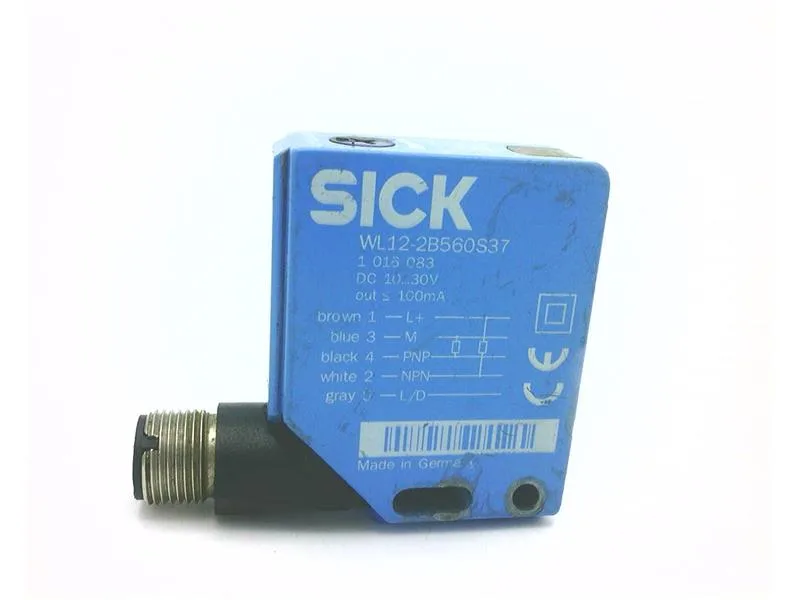

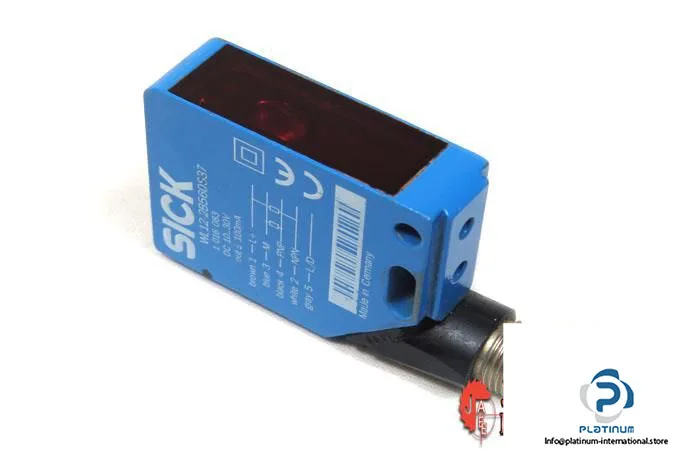

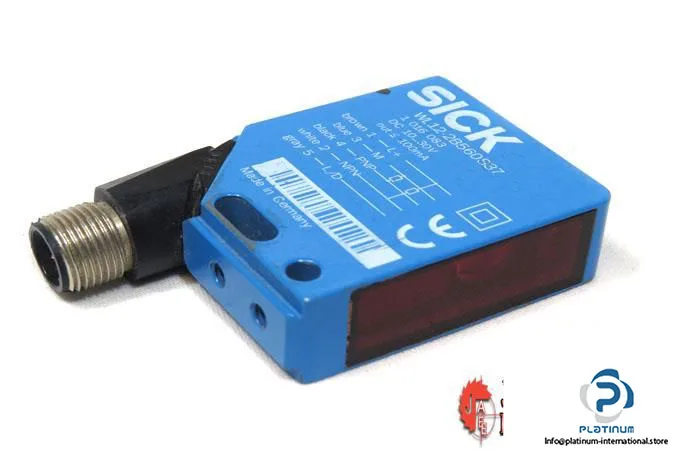

SICK WL12-2B560S37 PHOTOELECTRIC RETRO-REFLECTIVE SENSOR

$90.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

WL12-2B560S37 — Identification
ParameterValue
ModelWL12-2B560S37
WL12-2B560S37 — Sensing
ParameterValue
TypePHOTOELECTRIC RETRO-REFLECTIVE SENSOR
WL12-2B560S37 — Electrical
ParameterValue
Supply voltage10 … 30 V DC
WL12-2B560S37 — Connection
ParameterValue
Connection typeMale connector M12, 5-pin
WL12-2B560S37 — Specifications
ParameterValue
ConditionUsed
WL12-2B560S37 — Other specifications
ParameterValue
AdjustmentPotentiometer
Output signalNPN, PNP
IP ratingIP67
Housing materialMetal, Zinc diecast
Light source, typeLED, visible red light
Output current max.≤ 100 mA
Ambient operating temperature– 40 …+ 60 °C
Sensing range max (with PL80A reflector)0 … 500 mm
MPN
WL12-2B560S37
