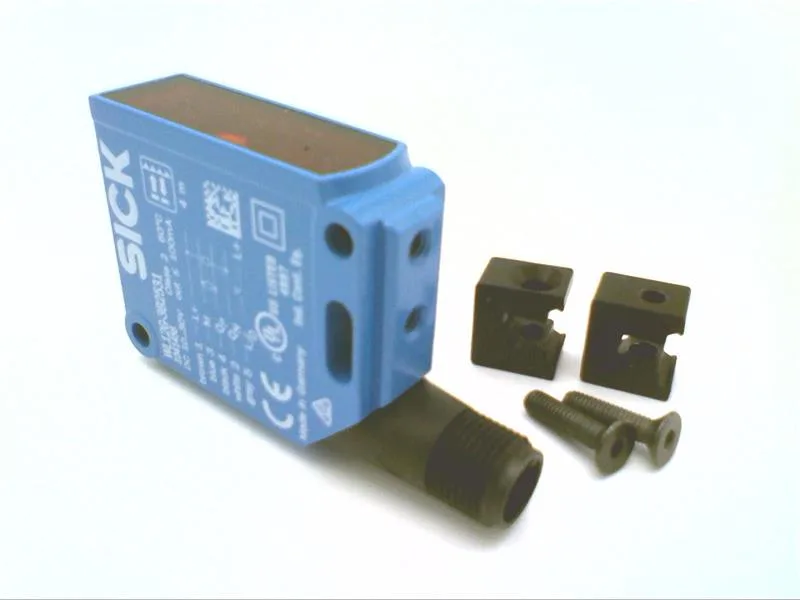

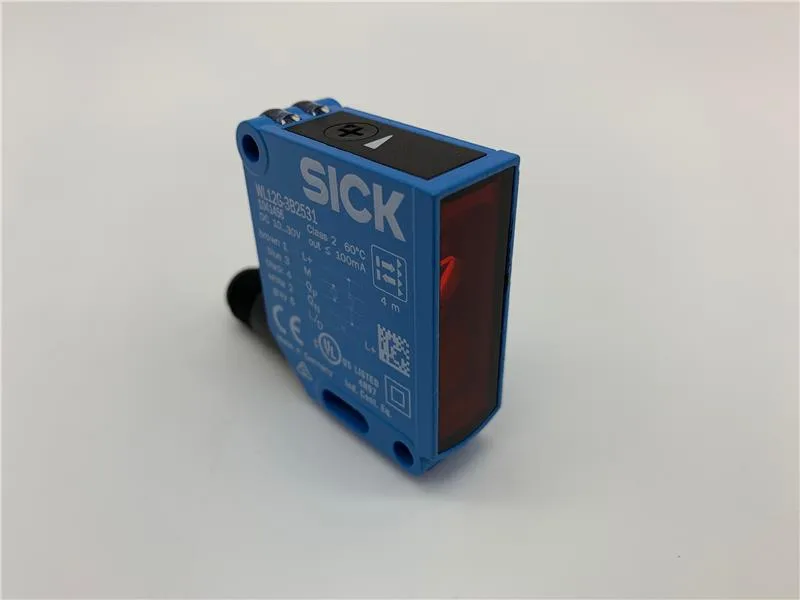

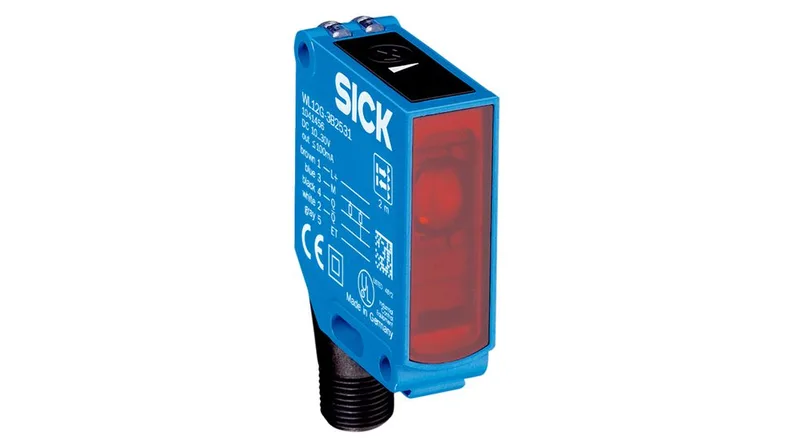

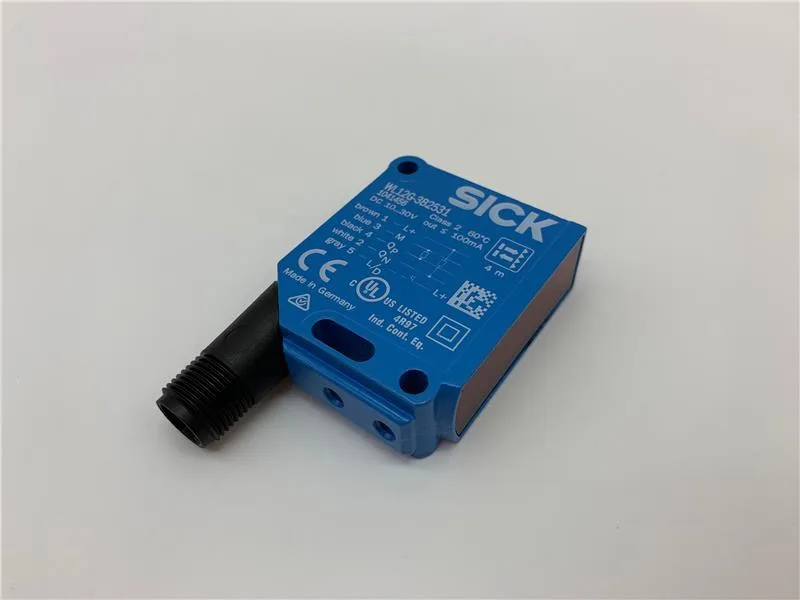

SICK WL12G-3B2531
MPNWL12G-3B2531
Photoelectric Sensor NPN / PNP 4m 330us 30V 100mA IP66 / IP67 / IP69K W12G
$200.03 – $309.13Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | W12G |
| Sensor type | Photoelectric Retro-Reflective Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 4 m |
| Sensing distance, min. | 0 m |
| Response time | 330 us |
| Light type | LED, Visible Red Light |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
Output
| Parameter | Value |
|---|---|
| Output type | NPN;PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 5-Pin |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP66;IP67;IP69K |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 60 °C |
Mechanical
| Parameter | Value |
|---|---|
| Length | 42 mm |
| Width | 15.6 mm |
| Height | 48.5 mm |
MPN
WL12G-3B2531
