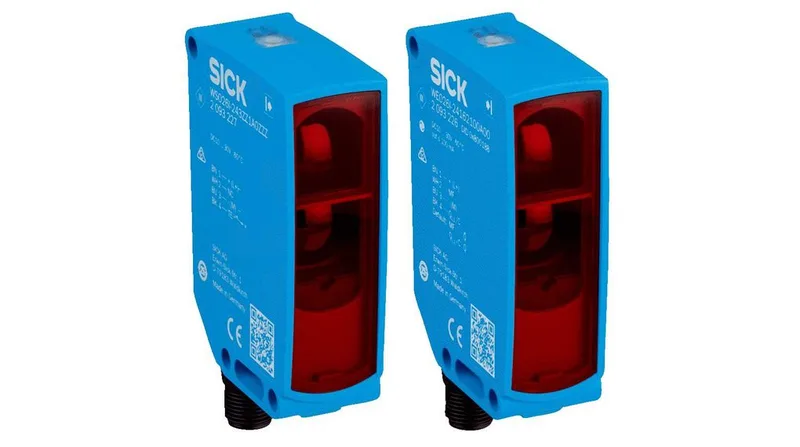

SICK WSE26P-24162100A00Z2
MPNWSE26P-24162100A00Z2
Photoelectric Sensor Push-Pull 60m 500us 30V 100mA PinPoint LED, Visible Red Light Connector, M12, 4-Pin IP66 / IP67 / IP69 W26
$366.71 – $383.28Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | W26 |
| Sensor type | Through-Beam Photoelectric Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 60 m |
| Response time | 500 us |
| Light type | PinPoint LED, Visible Red Light |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
Output
| Parameter | Value |
|---|---|
| Output type | Push-Pull |
| Load current | 100 mA |
| Switching type | IO-Link |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 4-Pin |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP66;IP67;IP69 |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 60 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 24.6 mm |
| Height | 82.5 mm |
MPN
WSE26P-24162100A00Z2
