Siemens 1 FT6102-1AC71-1AG1
MPN1 FT6102-1AC71-1AG1
End of Life

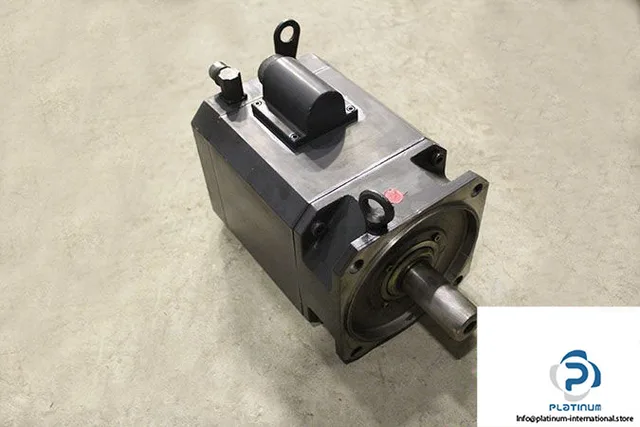

SIEMENS 1FT6102-1AC71-1AG1 SYNCHRONOUS SERVO MOTOR
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 26,7 kg |
| Parameter | Value |
|---|---|
| Duty | S1 Continuous |
| Model | 1 FT6102-1AC71-1AG1, 1FT6102-1AC71-1AG1 |
| Encoder | B01 2048 S/R |
| Condition | Used |
| Shelf no. | 220506, 250603 |
| Thermal class | F |
| Type of product | Synchronous Servo Motor |
| Max. speed [rpm] | 2600 |
| Rated speed [rpm] | 2000 / 1000 |
| Rated torque [Nm] | 23 / 25 |
| Rated voltage [V] | 274 / 137 |
| Protection class [IP] | 65 |
| Mounting position [IM] | B5 |
| Standstill current [A] | 10.2 / 12.3 |
| Standstill torque [Nm] | 22.4 / 27 |
MPN
1 FT6102-1AC71-1AG1
