Siemens 6ES7212-1AE40-0XB0 — PLCs (Programmable Logic Controllers)

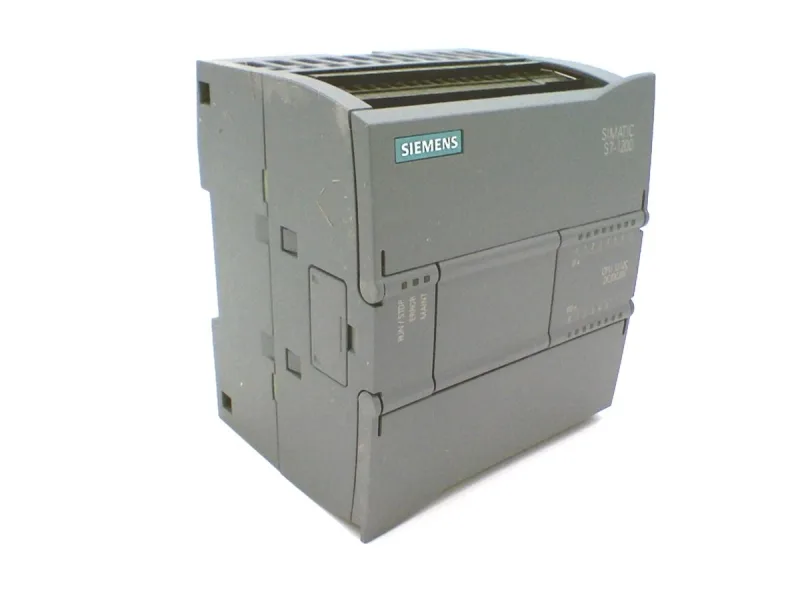

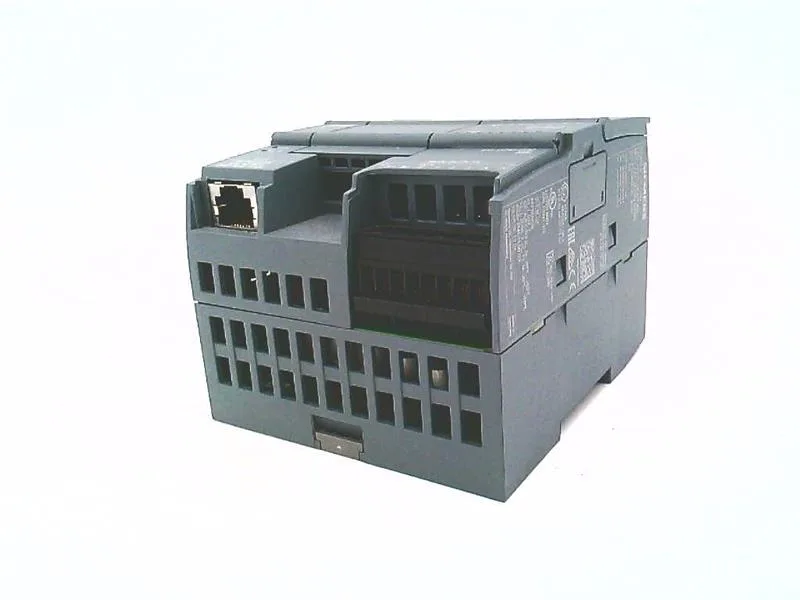

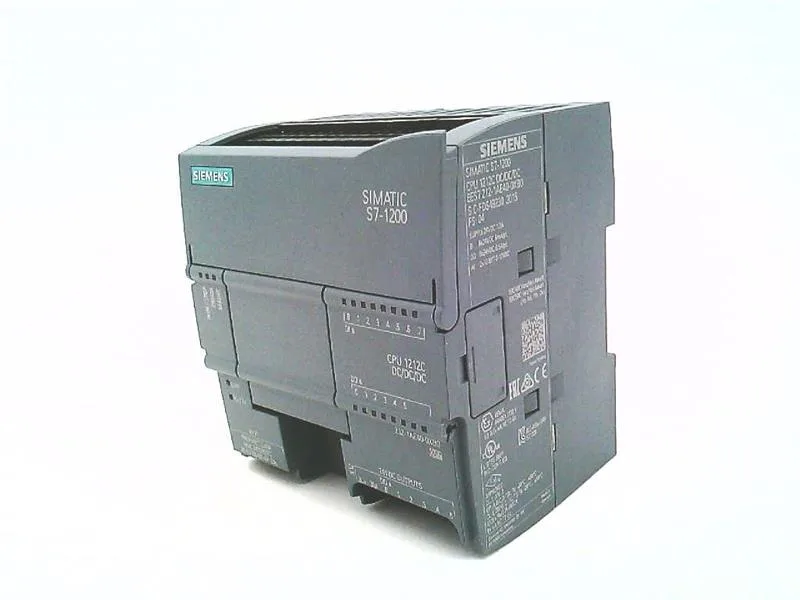

Siemens 6ES7212-1AE40-0XB0 S7-1200 CPU, 2MB Work Memory

MPN6ES7212-1AE40-0XB0
Active

Siemens S7-1200 CPU, 6ES7212-1AE40-0XB0, standard device with 2 Mbyte work memory, 24 V DC supply, OPC UA server, MODBUS TCP. Supply voltage L+ minus 4 V DC min. Operating temperature -40 to 70 °C.

$180.00 – $414.73Ref. price · indicative, final on quote
Siemens 6ES7212-1AE40-0XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7212-1AE40-0XB0 — I/O
ParameterValue
Digital inputs8; Integrated
Digital outputs6
6ES7212-1AE40-0XB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)0.08 µs; / instruction
Execution time, word operations (typ.)1.7 µs; / instruction
Execution time, floating-point arithmetic (typ.)2.3 µs; / instruction
Size, max.4 kbyte; Size of bit memory address area
6ES7212-1AE40-0XB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7212-1AE40-0XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)400 mA; CPU only
Permissible range, lower limit (DC)20.4 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)9 W
6ES7212-1AE40-0XB0 — Environmental
ParameterValue
Temperature, min.-40 °C
Temperature, max.70 °C
Operating temperature, min. (horizontal mounting)-20 °C
Operating temperature, max. (horizontal mounting)60 °C
6ES7212-1AE40-0XB0 — Mechanical
ParameterValue
Width90 mm
Height100 mm
Depth75 mm
Weight (approx.)370 g
6ES7212-1AE40-0XB0 — Communication
ParameterValue
Interface typePROFINET

Product details

The 6ES7212-1AE40-0XB0: Standard CPU from the S7-1200 family with 2 Mbyte of integrated work memory, enough for moderate logic and data handling. No PROFIsafe on board; safety integration needs a separate F-CPU or fail-safe signal module. OPC UA server is built in, so transparent data exchange with higher-level systems is available without an extra module. DCP and LLDP are enabled for network configuration. Communication portfolio covers MODBUS TCP, UDP, TCP/IP, and PROFIBUS via a CM 1243-5 (master) or CM 1242-5 (slave). 34 reserved connections with room to expand to 64 total under software configuration.

Supply voltage must be 24 V DC, tolerance down to L+ minus 4 V DC. Operating range -40 to 70 °C covers most industrial environments. Programming languages: LAD, FBD, SCL. The CPU supports forcing variables for commissioning, and the ERROR and MAINT LEDs give local diagnostics.

Certifications

Carries both CE and cULus marks, covering the European and North American markets.

Frequently asked questions

Does this CPU support DCP?

Yes, DCP (Discovery and Configuration Protocol) is enabled as listed.

Does it support FBD programming?

Yes, FBD (Function Block Diagram) is listed as supported.

What compliance certifications does it carry?

CE and cULus marks.

What is the integrated work memory capacity?

2 Mbyte.
