Siemens 1 FT6105-1AC71-1AH1
MPN1 FT6105-1AC71-1AH1
End of Life

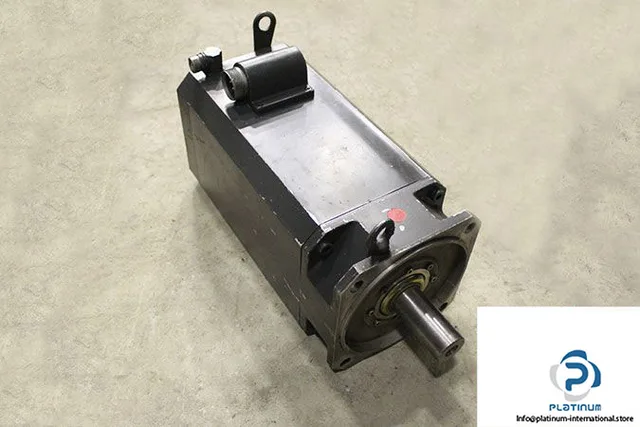

SIEMENS 1FT6105-1AC71-1AH1 SYNCHRONOUS SERVO MOTOR
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Duty | S1 Continuous |
| Model | 1 FT6105-1AC71-1AH1, 1FT6105-0AC71-1AH1 |
| Weight | 43,2 kg |
| Encoder | B01 2048 S/R |
| Condition | Used |
| Shelf no. | 220506, 250603 |
| Thermal class | F |
| Brake power [W] | 32 |
| Type of product | Synchronous Servo Motor |
| Max. speed [rpm] | 2500 |
| Rated speed [rpm] | 2000 / 1000 |
| Rated torque [Nm] | 38 / 46 |
| Rated voltage [V] | 286 / 143 |
| Brake voltage [VDC] | 24 |
| Protection class [IP] | 65 |
| Mounting position [IM] | B5 |
| Standstill current [A] | 41.5 / 50 |
| Standstill torque [Nm] | 18.4 / 22.2 |
MPN
1 FT6105-1AC71-1AH1
