Siemens 1FK7103-2AC7 1-1QA0
MPN1FK7103-2AC7 1-1QA0
End of Life

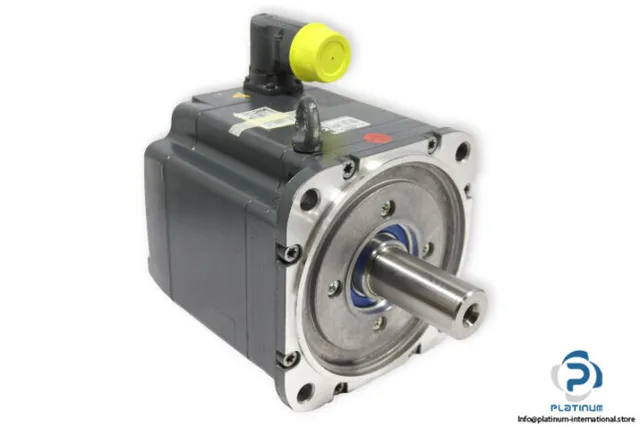

SIEMENS 1FK7103-2AC7 1-1QA0 SYNCHRONOUS SERVO MOTOR
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 28 kg |
| Parameter | Value |
|---|---|
| Model | 1FK7103-2AC7 1-1QA0, BSH1003P31A2A |
| Condition | New |
| Shelf no. | 250603 |
| Max. speed | 5000 min |
| Rated speed | 2000 min |
| Rated torque | 25 Nm |
| Stall torque | 36 Nm |
| Current | 11 A |
| Voltage | 324 V |
| Stall current | 14.4 A |
| Thermal class | F |
| Encoder system | Encoder AS20DQI V32 |
| Type of product | Synchronous Servo Motor |
| IP rating | IP64 |
| Method of cooling | IC411 “ Self Ventilated, Surface Cooled |
| Temperature sensor | Pt1000 (-50 to +500 °C) |
MPN
1FK7103-2AC7 1-1QA0
