Spare-part servo for SINAMICS V70/V90 drives

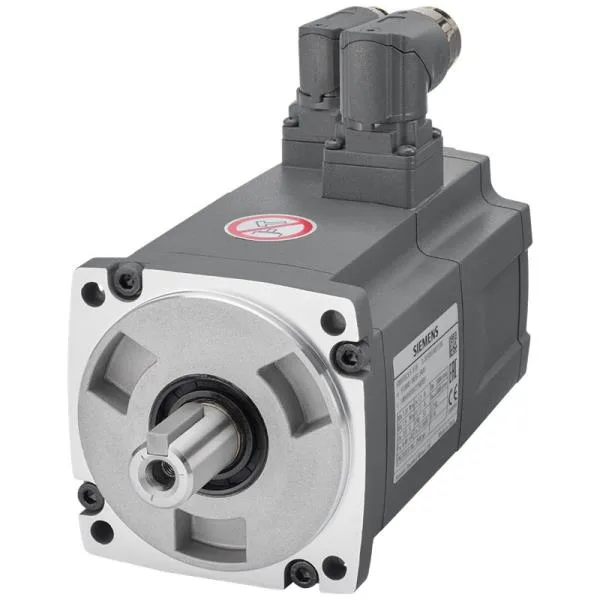

The 1FL6042-1AF61-0AG1: Rated 0.4 kW at 3000 rpm with 1.27 Nm rated torque (1.9 Nm peak), it's sized for light-duty indexing, pick-and-place, or conveyor positioning where the load inertia matches a 45 mm shaft-height frame. The motor runs on 400 V 3-phase AC and mates directly with SINAMICS V70 and V90 drives — no adapter or rewiring needed. The incremental TTL encoder (2500 incr/rev) gives position feedback for basic speed and torque control; if your application requires absolute positioning or higher resolution, you'd need a different encoder option.
IP65 and shaft details for washdown or dry environments
IP65 protection with the sealing ring means the motor body handles hose-down cleaning and dust ingress — common in food packaging, woodworking, or light machining where coolant mist is present. The plain shaft (tolerance N) without a holding brake means this variant is for applications where the load doesn't need to hold position when power is removed; if you need a brake, order the -0AG1 variant with brake.
