Overview

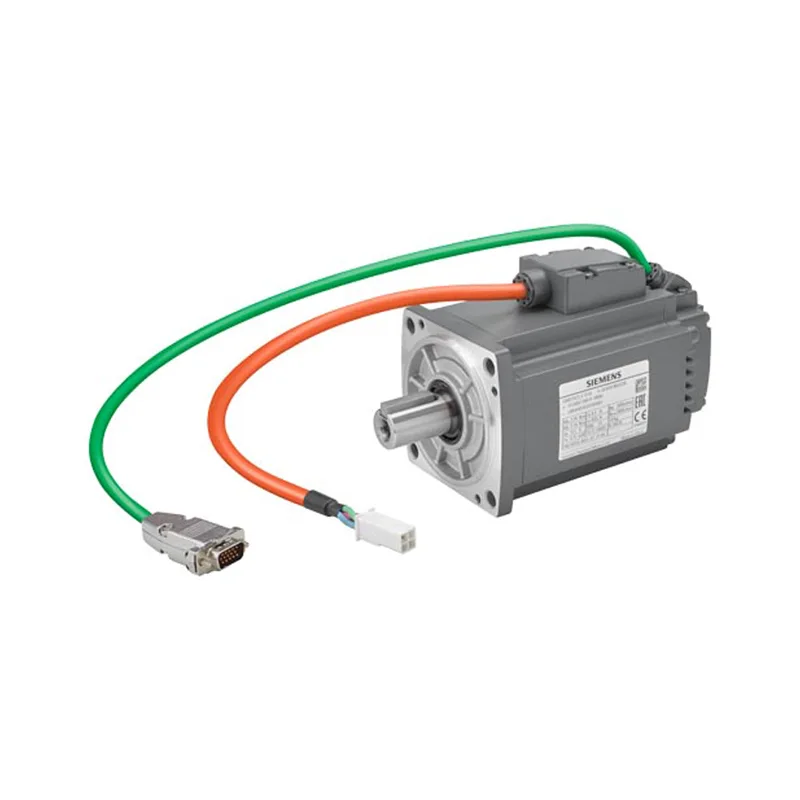

The 1FL6042-2AF21-1LH1 is a Siemens SIMOTICS S-1FL6 servo motor rated at 0.75 kW on a 230 V 3 AC supply, delivering 2.39 Nm rated torque at 3000 rpm. It carries a holding brake, IP65 sealing, and an absolute encoder with 20-bit single-turn plus 12-bit multi-turn resolution. The motor is designed for use with SINAMICS V90 drives.
This low-inertia rotor design (moment of inertia 1.060 kgcm²) gives fast acceleration and deceleration for cyclic positioning tasks. The absolute encoder provides position feedback without a homing routine on power-up, simplifying commissioning in multi-axis applications. Natural cooling keeps the frame free of external fan connections, reducing wiring and maintenance.
Applications
S-1FL6 servo motors of this power class are commonly used in packaging machines, printing presses, labelling systems, and general automation axes where precise speed and position control is required. The IP65 rating allows mounting in washdown or dusty environments without an additional enclosure.
