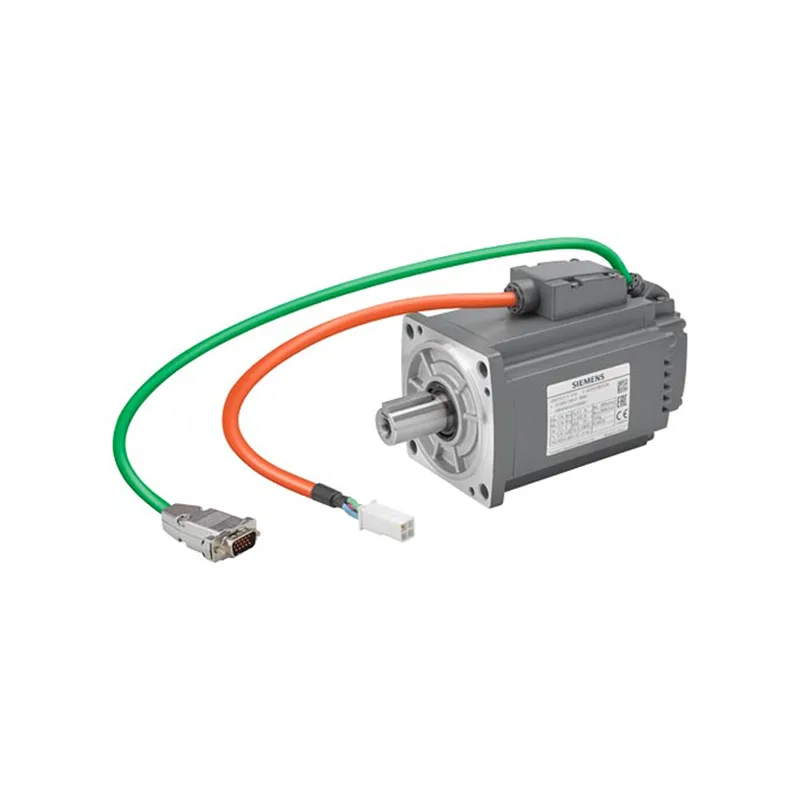

Siemens 1FL6042-2AF21-1MG1

Siemens 1FL6042-2AF21-1MG1 1FL6 Servomotor, 750 W, 2.39 Nm, IP65

MPN1FL6042-2AF21-1MG1
NRND

Siemens 1FL6042-2AF21-1MG1 Servo Motor & Drives — now in phase-out and being discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$480.00Ref. price · indicative, final on quote
Siemens 1FL6042-2AF21-1MG1 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

1FL6042-2AF21-1MG1 specifications
ParameterValue
Series1FL6 servomotors for SINAMICS V90
REACH art. 33 duty to inform according to the current list of candidatesLead CAS-No. 7439-92-1 > 0,1 % (w / w)
Packaging dimensions (L x w x h)316.00 x 182.00 x 170.00 mm
Compliance with the substance restrictions according to RoHS directiveSince: 01-01-18
Group codeR220
Product group3585
Product classC: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit.
Quantity unit1 Piece
Packaging quantity1
Export control regulationsAL : N / ECCN : N

Product details

Overview

The 1FL6042-2AF21-1MG1 is a Siemens 1FL6 servomotor for SINAMICS V90 drives, rated 750 W with 2.39 Nm continuous torque at 3000 rpm. It carries an IP65 enclosure, a plain shaft, and an absolute single-turn 21-bit encoder — a low-inertia design suited for dynamic positioning applications.

Natural cooling (no fan) means the motor relies on its own surface area and the machine frame for heat dissipation; duty cycles with sustained high torque may require a larger frame or forced-air add-on.

Applications

The 1FL6 series is specified for servo axes in packaging, textile, printing, and general automation machinery — any application where a SINAMICS V90 drive controls a single axis with moderate torque and dynamic response. The 750 W rating and low-inertia rotor suit it for indexing tables, belt-driven linear axes, and small robotic cells.

MPN
1FL6042-2AF21-1MG1
