What the 7 kW and 33.4 Nm ratings mean for your axis

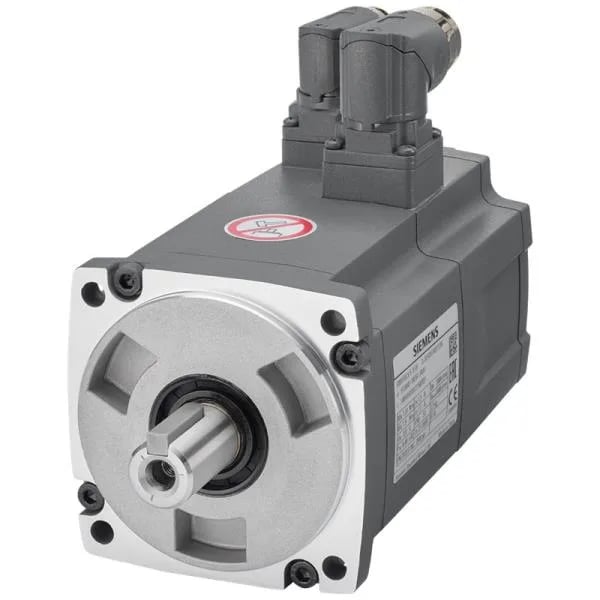

The 1FL6096-1AC61-0AB1 is a SIMOTICS S-1FL6 servo motor rated 7 kW continuous power at 2000 rpm base speed, with a continuous torque of 33.4 Nm and a peak torque of 40 Nm at standstill. That 40 Nm peak handles acceleration loads during rapid direction changes or when the axis breaks away from a stop — the motor can deliver that torque briefly without tripping the drive's current limit. The TTL incremental encoder with 2500 lines per revolution gives 10,000 counts per rev after quadrature — enough resolution for positioning accuracy within a few arc-minutes on a ball-screw axis.
IP65 and holding brake — where this motor lives
IP65 with the sealing ring means the motor body and shaft seal withstand washdown — it runs on food processing lines, machine tool coolant spray, or outdoor conveyor sections without a secondary cover. The holding brake holds the load at zero speed when the drive is disabled — the brake is rated for static holding, not dynamic stopping, so the drive decelerates the load before the brake engages. Shaft height 90 mm with a feather key — this mounts to standard NEMA or metric flanges; the key transmits torque without slipping on the shaft taper.
Sourced through authorized distribution channels against your BOM quantity.
