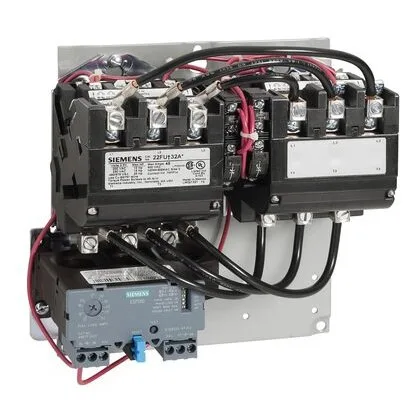

Siemens 22FUF32AA
MPN22FUF32AA
S-A 22FUF32AA Starter,FVR SZ2,13-52|S-A 22FUF32AA Starter FVR SZ2
$2,134.33 – $2,207.79Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FVR |
| Wire termination type | Screw |
| Overload protection type | Electronic |
| Coil voltage | 110-120/220-240V AC |
| Maximum voltage rating | 600V AC |
| Nominal coil voltage @ 60Hz | 120/240V AC (Dual Rated) |
| Max current | 45 A |
| Maximum overload relay current setting | 52 A |
| Minimum overload relay current setting | 13 A |
| Horsepower @ three phase - 208V AC | 10 hp |
| Horsepower @ three phase - 240V AC | 15 hp |
| Horsepower @ three phase - 480V AC | 25 hp |
All specifications
| Parameter | Value |
|---|---|
| Horsepower @ three phase - 600V AC | 25 hp |
| Frequency | 60 Hz |
| Poles | 3 |
| Phases | Three |
| NEMA enclosure rating | No Enclosure |
| Mounting style | Surface |
| Mounting postion | Vertical |
| Response time | 10 to 24 msec (OFF-Delay Time); 19 to 29 msec (ON-Delay Time) |
| Maximum operating temperature | 104 °F |
| Minimum operating temperature | -4 °F |
| Overall depth | 4.17 in |
| Overall width | 10.5 in |
| Overall height | 8.94 in |
| Mechanical operating durability | 10,000,000 |
| Standards | CSA 22.2 No.14; NEMA ICS 2; UL 508 |
| Brand | SIEMENS |
| NEMA size | 2 |
| Trip class | 5/10/20/30 |
| Starter style | NEMA |
| Reversing capability | Reversing |
| Thermal units required | None (Not Applicable to Electronic Overloads) |
| Auxiliary contacts included | 1NO |
| Includes auxiliary contacts | Yes |
MPN
22FUF32AA
