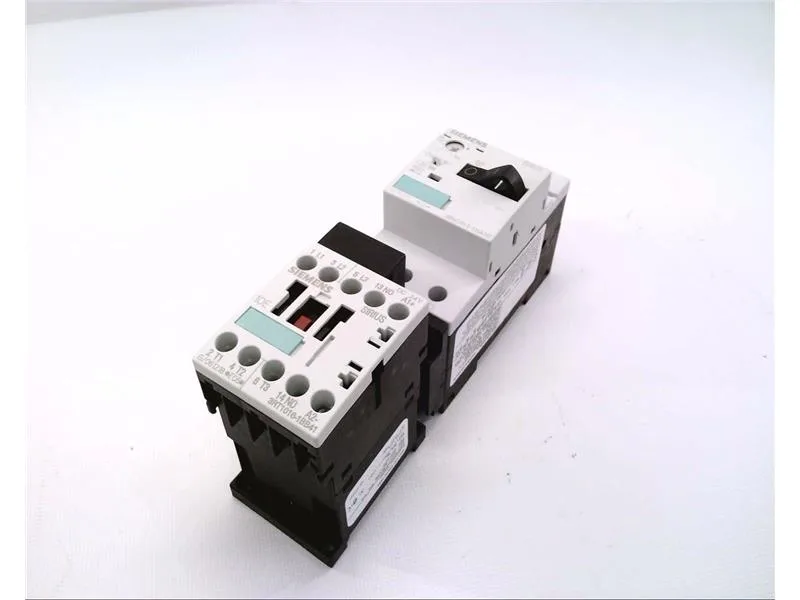

The Siemens 3RA1110-1GD15-1BB4 is a SIRIUS non-fused load feeder configured as a direct starter, size S00, rated 2.2 kW at 400 V AC. It integrates a contactor, a bimetal overload relay, and a circuit-breaker for short-circuit protection into a single, pre-assembled unit that snaps onto a DIN rail.
The 2.2 kW rating at 400 V defines the maximum motor load this feeder can switch under AC-3 duty. The insulation voltage is rated 690 V. The depth of 128 mm includes clearance for wiring and the supplied busbar adapter.
What Comes in the Box
This order code ships as a complete feeder assembly. It includes the supplied contactor 3RT1015-1BB41, the link module 3RA1911-1AA00, the circuit-breaker 3RV1011-1GA10, and the busbar adapter 8US1251-5DM07. The busbar center-to-center spacing is 60 mm, matching standard SIRIUS busbar systems. Wiring terminals accept solid or stranded conductors from 0.5 to 4 mm², or two conductors of 0.75 to 2.5 mm². For AWG, main contacts accept 2x (18 to 14). The unit is designed for a vertical mounting surface, rotatable ±90° and tiltable ±22.5° front-to-back.
