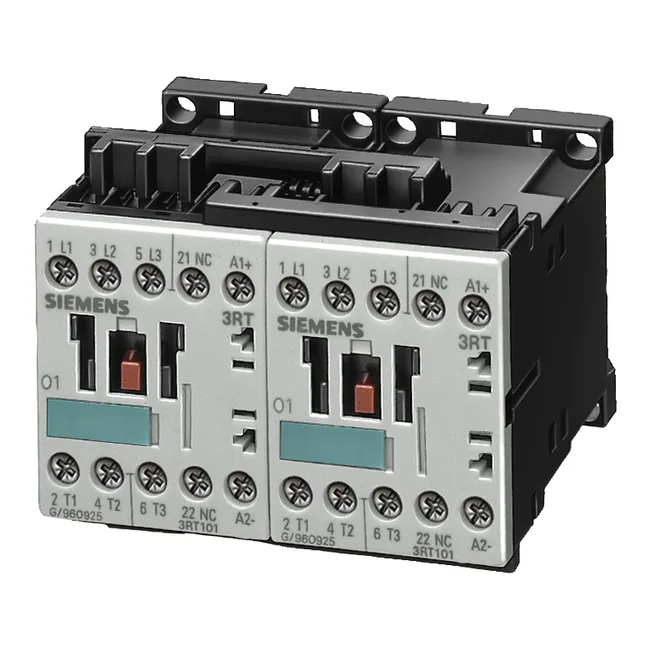

Siemens 3RA1315-8XB30-1AP0
MPN3RA1315-8XB30-1AP0
Reversing contactor assembly AC-3, 3 kW/400 V, 3-pole Size S00, Screw terminal 230 V AC, 50/60 Hz Electrical and mechanical interlock!!! Phased-out product!!! Successor is SIRIUS 3RA2 Preferred successor type is >>3RA2315-8XB30-1AP0<<
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Contacts & Control
| Parameter | Value |
|---|---|
| Rated voltage range at 50 Hz | 230 V |
| Control supply voltage type | AC |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Main circuit connection type | screw-type terminals |
| Width | 90 mm |
| Height | 67 mm |
| Depth | 72 mm |
Other specifications
| Parameter | Value |
|---|---|
| 1 rated value | 50 Hz |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Product function | Reversing contactor |
| Size of contactor | S00 |
| Protection class IP on the front | IP20 |
| Reference code acc. to DIN EN 61346-2 | Q |
| Reference code acc. to DIN EN 81346-2 | Q |
| Operating power at AC-3 at 400 v rated value | 3 kW |
| Operating current at AC-3 at 400 v rated value | 7 A |
| Number of NC contacts for auxiliary contacts per direction of rotation | 0 |
| Number of NO contacts for auxiliary contacts per direction of rotation | 0 |
MPN
3RA1315-8XB30-1AP0
