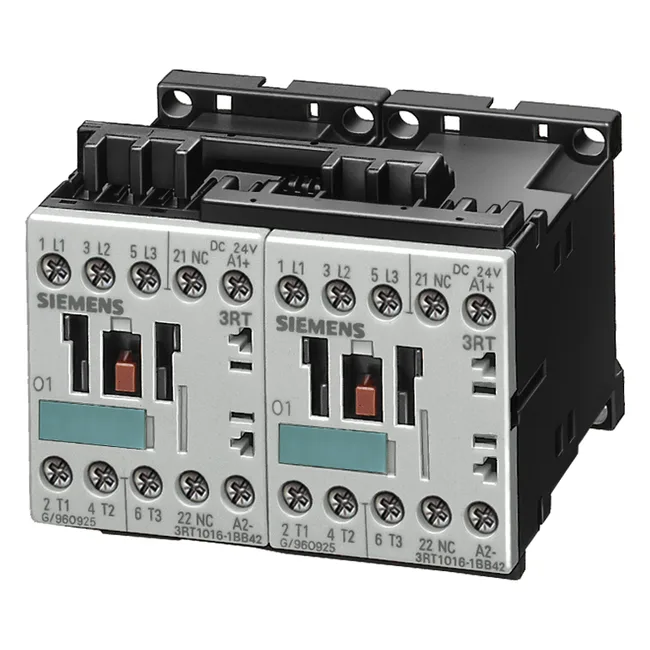

Siemens 3RA1316-8XB12-2JC4
MPN3RA1316-8XB12-2JC4
Reversing contactor assembly AC-3, 3 kW/400 V, 30 V DC 0.7...1.25 x Us, 3-pole Size S00, Spring-type terminal Mechanical interlocking with diode!!! Phased-out product!!! Successor is SIRIUS 3RA2
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Ratings & Performance
| Parameter | Value |
|---|---|
| Operational current Ie, AC-3 at 400 V | 9 A |
Identification
| Parameter | Value |
|---|---|
| Reference designation (IEC 81346-2) | Q |
Contacts & Control
| Parameter | Value |
|---|---|
| Control supply voltage type | DC |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Main circuit connection type | Cage Clamp terminals |
| Mounting / fastening method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022 |
| Width | 90 mm |
| Height | 67 mm |
| Depth | 72 mm |
Other specifications
| Parameter | Value |
|---|---|
| Product function | Reversing contactor |
| Size of contactor | S00 |
| At DC rated value | 30 V |
| Substance prohibitance | 07/01/2006 |
| Protection class IP on the front | IP20 |
| Ambient temperature during operation | -25 ... +60 °C |
| Operating power at AC-3 at 400 v rated value | 4 kW |
| Number of NC contacts for auxiliary contacts per direction of rotation | 0 |
| Number of NO contacts for auxiliary contacts per direction of rotation | 0 |
MPN
3RA1316-8XB12-2JC4
