Siemens 3RA1325-8XB30-1AL2
MPN3RA1325-8XB30-1AL2

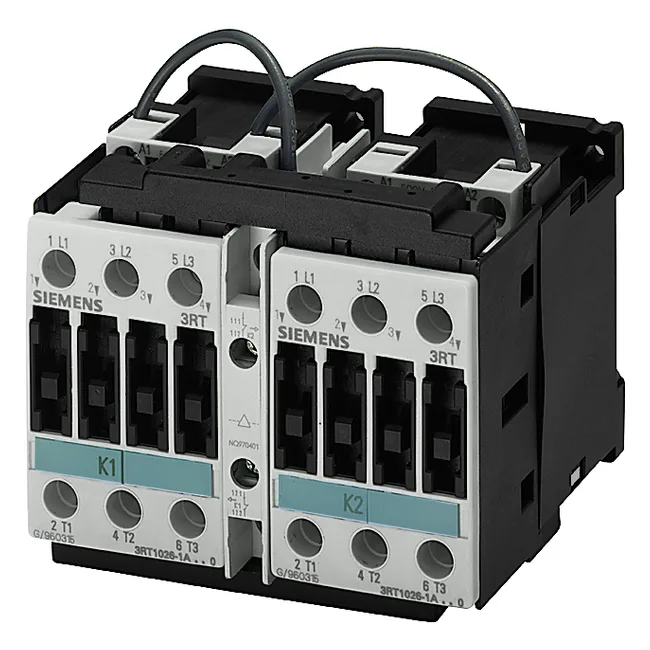

Reversing contactor assembly AC-3, 7.5 kW/400 V, 3-pole Size S0, Screw terminal 230 V AC, 50/60 Hz Electrical and mechanical interlock!!! Phased-out product!!! Successor is SIRIUS 3RA2 Preferred successor type is >>3RA2325-8XB30-1AL2<<
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Operational current Ie, AC-3 at 400 V | 17 A |
| Parameter | Value |
|---|---|
| Rated voltage range at 50 Hz | 230 V |
| Control supply voltage type | AC |
| Parameter | Value |
|---|---|
| Main circuit connection type | screw-type terminals |
| Mounting / fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Width | 100 mm |
| Height | 86 mm |
| Depth | 91 mm |
MPN
3RA1325-8XB30-1AL2
