Siemens 3RA1416-8XB31-1AB0
MPN3RA1416-8XB31-1AB0

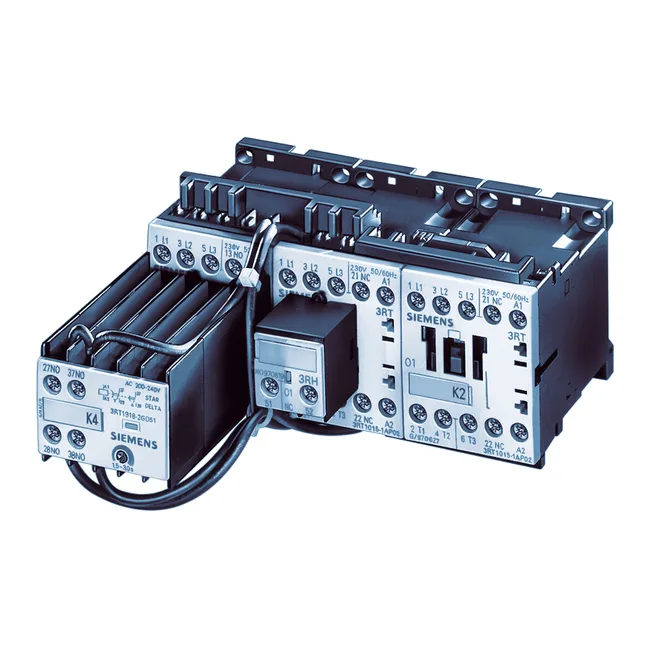

Contactor assembly Star-delta (wye-delta) (pre-assembled) with timing relay on the front AC-3, 7.5 kW/400 V, 3-pole Size S00, S00, S00 Electrical and mechanical interlock, Screw terminal 24 V AC, 50/60 Hz!!! Phased-out product!!! Successor is SIRIUS 3RA2 Preferred successor type is >>3RA2416-8XF31-1AB0<<
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product designation | contactor assembly |
| Main circuit poles | 3 |
| Brand | SIRIUS |
| Reference designation (IEC 81346-2) | Q |
| Parameter | Value |
|---|---|
| Rated motor power at 400 V | 7.5 kW |
| Rated insulation voltage Ui (AC, pollution degree 3) | 690 V |
| Parameter | Value |
|---|---|
| Rated voltage range at 50 Hz | 24 V |
| Control supply voltage type | AC |
| Auxiliary switch extension | Yes |
| Parameter | Value |
|---|---|
| Main circuit connection type | screw-type terminals |
| Mounting / fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Mounting position | with vertical mounting surface +/-180° rotatable, with vertical mounting surface +/- 30° tiltable to the front and back |
| Width | 135 mm |
| Height | 71 mm |
| Depth | 148 mm |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Transport temperature range | -55 ... +80 °C |
| Pollution degree | 3 |
MPN
3RA1416-8XB31-1AB0
