Siemens 3RA2110-0EA15-1AK6 — Motor Starters

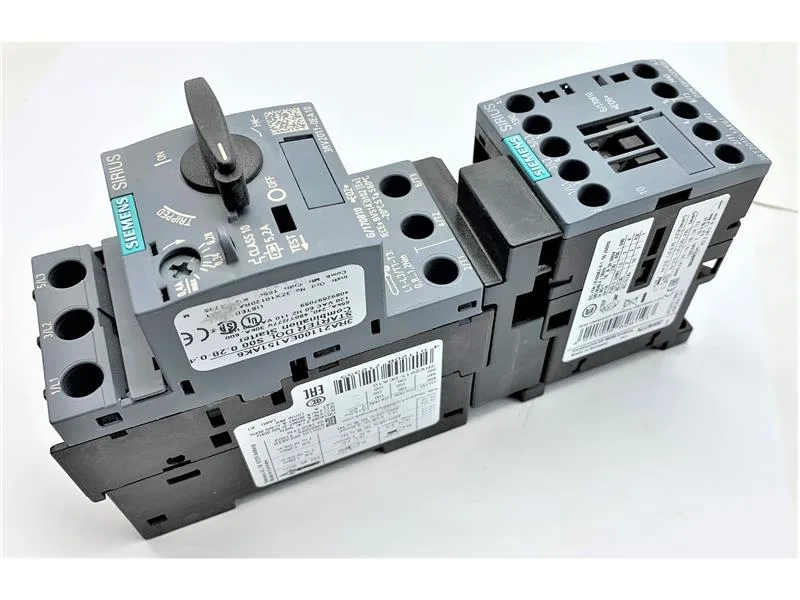

Siemens 3RA2110-0EA15-1AK6 SIRIUS non-fused load feeder, S00

MPN3RA2110-0EA15-1AK6

Siemens SIRIUS 3RA2110-0EA15-1AK6, non-fused load feeder, size S00, direct starter, 45 mm width, Class 10 trip, screw and snap-on mounting onto 35 mm standard mounting rail.

$71.12Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3RA2110-0EA15-1AK6 — Identification
ParameterValue
Product designationnon-fused load feeders 3RA2
Main circuit poles3
BrandSIRIUS
Load feeder sizeS00
Product design / constructiondirect starter
Circuit-breaker sizeS00
Included contactor (type)3RT2015-1AK61
Included circuit-breaker (type)3RV2011-0EA10
Included link module (type)3RA1921-1DA00
3RA2110-0EA15-1AK6 — Ratings & Performance
ParameterValue
Rated motor power at 400 V90 W
Operational current Ie, AC-3 at 400 V0.3 A
Rated voltage at AC-3, max.690 V
Rated operating frequency50 ... 60 Hz
Rated impulse withstand voltage (Uimp)6 kV
Rated insulation voltage Ui (AC, pollution degree 3)690 V
Mechanical service life, typ. (switching cycles)30 000 000
3RA2110-0EA15-1AK6 — Protection & Tripping
ParameterValue
Trip classCLASS 10
Short-circuit protectionYes
Rated short-circuit current at 400 V (IEC 60947-4-1)153 000 A
Overload release setting range (current)0.28 ... 0.4 A
Overload release typethermal (bimetallic)
Short-circuit trip typemagnetic
Duty / utilization type (IEC 60947-6-2)2
3RA2110-0EA15-1AK6 — Contacts & Control
ParameterValue
Rated value690 V
Rated voltage range at 50 Hz110 V
Auxiliary switch extensionYes
Switching contact typeelectromechanical
3RA2110-0EA15-1AK6 — Mechanical & Connection
ParameterValue
Main circuit connection typescrew-type terminals
Main contact conductor range (AWG)2x (20 ... 16), only for contactor 2x (18 ... 14), 2x 12
Mounting / fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail
Mounting positionvertical
Width45 mm
Height167.2 mm
Depth97.1 mm
3RA2110-0EA15-1AK6 — Environmental
ParameterValue
Operating temperature range-20 ... +60 °C
Storage temperature range-50 ... +80 °C
Transport temperature range-50 ... +80 °C
Pollution degree3
Shock resistance (IEC 60068-2-27)6g / 11 ms

Product details

What this SIRIUS load feeder packs

The Siemens 3RA2110-0EA15-1AK6 is a SIRIUS non-fused load feeder, size S00, wired as a direct starter. It ships as a pre-assembled unit combining a contactor (3RT2015-1AK61), a thermal bimetallic overload relay, and a circuit-breaker (3RV2011-0EA10) with a magnetic short-circuit trip — all on a 45 mm wide footprint that snaps onto a 35 mm DIN rail.

The 45 mm width and 167.2 mm height fit a standard S00 feeder slot in a SIRIUS panel layout. Clearance: 20 mm upward, 10 mm downward, 9 mm at the side — no space needed forward or backward. That's another SKU that slots into a crowded enclosure without re-spacing the gland plate.

Frequently asked questions

Does 3RA2110-0EA15-1AK6 include both contactor and overload protection?

Yes. It is a pre-assembled direct starter that includes a contactor (3RT2015-1AK61), a thermal bimetallic overload relay, and a circuit-breaker (3RV2011-0EA10) with magnetic short-circuit trip — all in one 45 mm wide package.

What is the rated current adjustment range of 3RA2110-0EA15-1AK6?

The evidence does not list a specific rated current adjustment range for this exact order code. The overload relay is thermal bimetallic and Class 10; the circuit-breaker is magnetic-trip. For the exact setting range, reference the supplied circuit-breaker 3RV2011-0EA10 and the contactor 3RT2015-1AK61 datasheets.
