Siemens 3RA2110-0JA15-1FB4 — Motor Starters

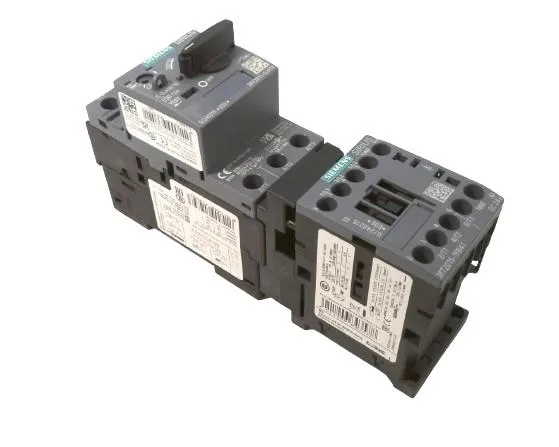

Siemens 3RA2110-0JA15-1FB4 SIRIUS Direct Starter

MPN3RA2110-0JA15-1FB4
Active

Siemens SIRIUS 3RA2110-0JA15-1FB4 direct on-line starter, size S00, 250 kW at 400 V, CLASS 10, 97 mm depth, 45 mm width, 167 mm height, screw and snap-on DIN rail.

$72.39Ref. price · indicative, final on quote
Siemens 3RA2110-0JA15-1FB4 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RA2110-0JA15-1FB4 — Identification
ParameterValue
Product designationDirect (on-line) starter
Main circuit poles3
BrandSIRIUS
Load feeder sizeS00
Product design / constructionfor standard rail or screw mounting
Circuit-breaker sizeS00
Included contactor (type)3RT2015-1FB41
Included circuit-breaker (type)3RV2011-0JA10
Included link module (type)3RA1921-1DA00
3RA2110-0JA15-1FB4 — Ratings & Performance
ParameterValue
Rated motor power at 400 V250 kW
Rated voltage at AC-3, max.690 V
Rated motor power at 460/480 V (hp)0.5 hp
Rated motor power at 575/600 V (hp)0.5 hp
Rated current at 480 V1 A
Rated current at 600 V1 A
Rated operating frequency50 ... 60 Hz
Rated impulse withstand voltage (Uimp)6 kV
Rated insulation voltage Ui (AC, pollution degree 3)690 V
3RA2110-0JA15-1FB4 — Protection & Tripping
ParameterValue
Trip classCLASS 10
Short-circuit protectionYes
Rated short-circuit current at 400 V (IEC 60947-4-1)150 000 A
Overload release setting range (current)0.7 ... 1 A
Overload release typethermal (bimetallic)
Short-circuit trip typemagnetic
Duty / utilization type (IEC 60947-6-2)2
3RA2110-0JA15-1FB4 — Contacts & Control
ParameterValue
Rated value24 ... 24 V
Control supply voltage typeDC
Auxiliary switch extensionYes
Switching contact typeelectromechanical
3RA2110-0JA15-1FB4 — Communication
ParameterValue
AS-Interface protocol supportNo
3RA2110-0JA15-1FB4 — Mechanical & Connection
ParameterValue
Mounting / fastening methodscrew and snap-on mounting onto 35 mm DIN rail
Mounting positionvertical
Width45 mm
Height167 mm
Depth97 mm
3RA2110-0JA15-1FB4 — Environmental
ParameterValue
Operating temperature range-20 ... +60 °C
Storage temperature range-50 ... +80 °C
Transport temperature range-50 ... +80 °C
Shock resistance (IEC 60068-2-27)6g / 11 ms

Product details

The 3RA2110-0JA15-1FB4: It comes supplied with the 3RT2015-1FB41 contactor and 3RA1921-1DA00 link module, so you're not piecing together a starter from separate bins.

Mounting and panel fit

Vertical mounting position only, per the spec; clearance needs are 50 mm upwards, 20 mm forwards, and 20 mm at the side for air circulation and wiring access.

Where it lives in the panel

Rated for operation from -20 to +60 °C ambient, with storage and transport range from -50 to +80 °C. That covers most indoor industrial panels, but if your enclosure sits near a furnace or in a hot climate, keep an eye on the upper end — the bimetallic overload release is thermal, so ambient heat shifts the trip curve.
