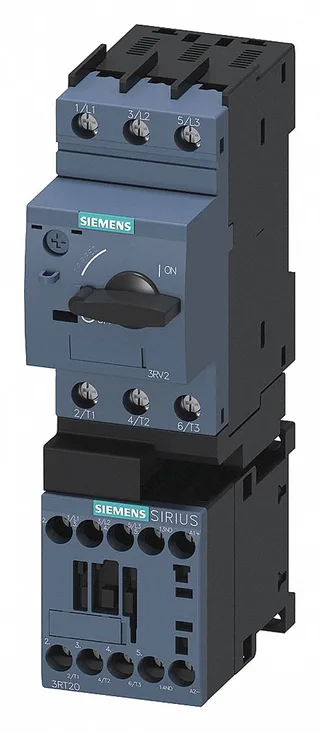

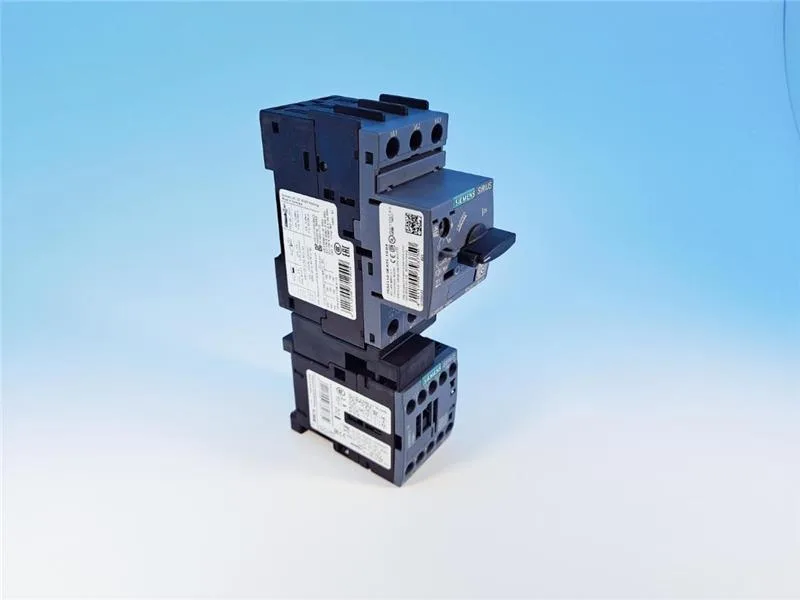

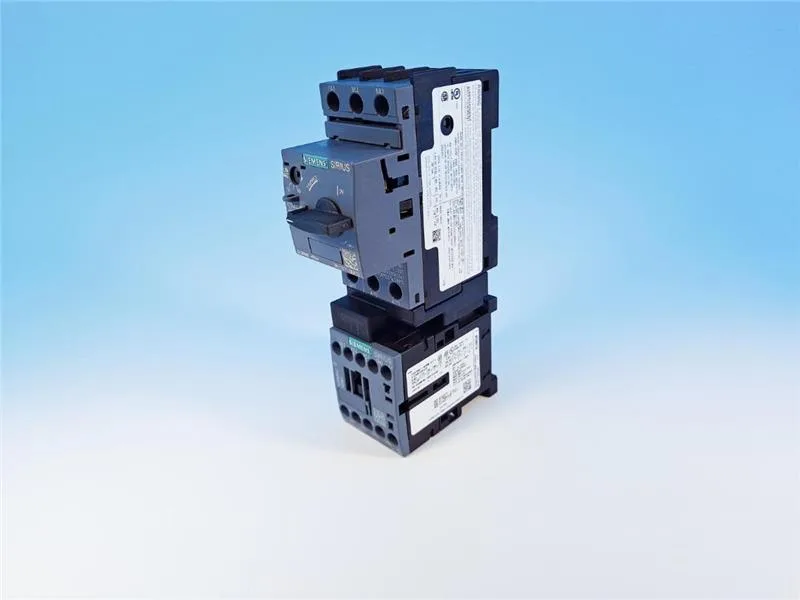

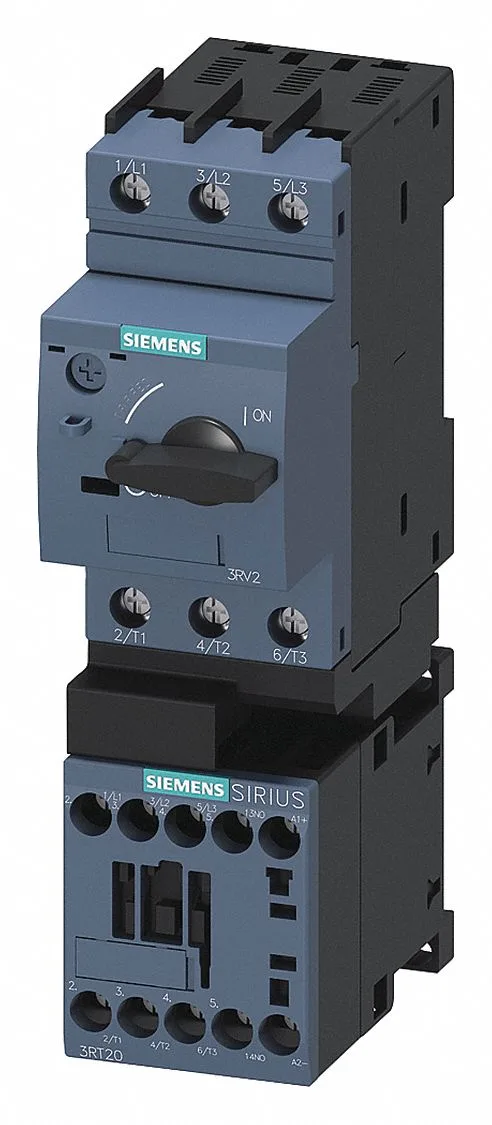

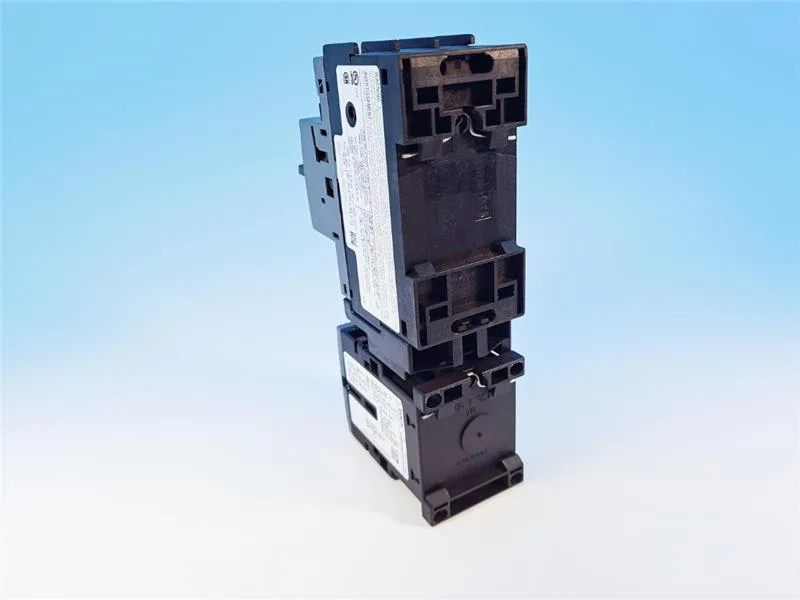

Siemens SIRIUS direct online starter, Size S00, 24 V DC coil, AC-3 1.25 A at 400 V, Class 10 thermal bimetallic overload, screw terminals, 45 mm wide, for 35 mm DIN rail.
| Parameter | Value |
|---|---|
| Product designation | Direct (on-line) starter |
| Main circuit poles | 3 |
| Brand | SIRIUS |
| Load feeder size | S00 |
| Product design / construction | for standard rail or screw mounting |
| Circuit-breaker size | S00 |
| Included contactor (type) | 3RT2015-1BB41 |
| Included circuit-breaker (type) | 3RV2011-0KA10 |
| Included link module (type) | 3RA1921-1DA00 |
| Parameter | Value |
|---|---|
| Rated motor power at 400 V | 370 kW |
| Rated voltage at AC-3, max. | 690 V |
| Rated motor power at 460/480 V (hp) | 0.75 hp |
| Rated motor power at 575/600 V (hp) | 0.75 hp |
| Rated current at 480 V | 1.25 A |
| Rated current at 600 V | 1.25 A |
| Rated operating frequency | 50 ... 60 Hz |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated insulation voltage Ui (AC, pollution degree 3) | 690 V |
| Parameter | Value |
|---|---|
| Trip class | CLASS 10 |
| Short-circuit protection | Yes |
| Rated short-circuit current at 400 V (IEC 60947-4-1) | 150 000 A |
| Overload release setting range (current) | 0.9 ... 1.25 A |
| Overload release type | thermal (bimetallic) |
| Short-circuit trip type | magnetic |
| Duty / utilization type (IEC 60947-6-2) | 2 |
| Parameter | Value |
|---|---|
| Rated value | 24 ... 24 V |
| Control supply voltage type | DC |
| Auxiliary switch extension | Yes |
| Switching contact type | electromechanical |
| Parameter | Value |
|---|---|
| AS-Interface protocol support | No |
| Parameter | Value |
|---|---|
| Mounting / fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| Mounting position | vertical |
| Width | 45 mm |
| Height | 167 mm |
| Depth | 97 mm |
| Parameter | Value |
|---|---|
| Operating temperature range | -20 ... +60 °C |
| Storage temperature range | -50 ... +80 °C |
| Transport temperature range | -50 ... +80 °C |
| Shock resistance (IEC 60068-2-27) | 6g / 11 ms |
The Siemens 3RA2110-0KA15-1BB4 is a SIRIUS direct-on-line starter in Size S00, combining a contactor and a thermal bimetallic overload relay in one package. Rated AC-3 at 1.25 A at 400 V, it's sized for small motor loads like pumps or fans on a DIN-rail panel.
Clearance needs: 50 mm above, 20 mm front, 20 mm sides, 10 mm below — zero clearance behind.
The supplied contactor is 3RT2015-1BB41, so if you're swapping just the contactor in a panel, that's the specific sub-unit.
The starter is rated AC-3 at 1.25 A at 400 V, with a 24 V DC coil and Class 10 thermal overload protection. Motor power rating is 370 kW at 400 V.
Width is 45 mm, depth 97 mm, height 167 mm. Mounts on 35 mm DIN rail with 50 mm clearance above, 20 mm front and sides, 10 mm below, zero behind.
This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
