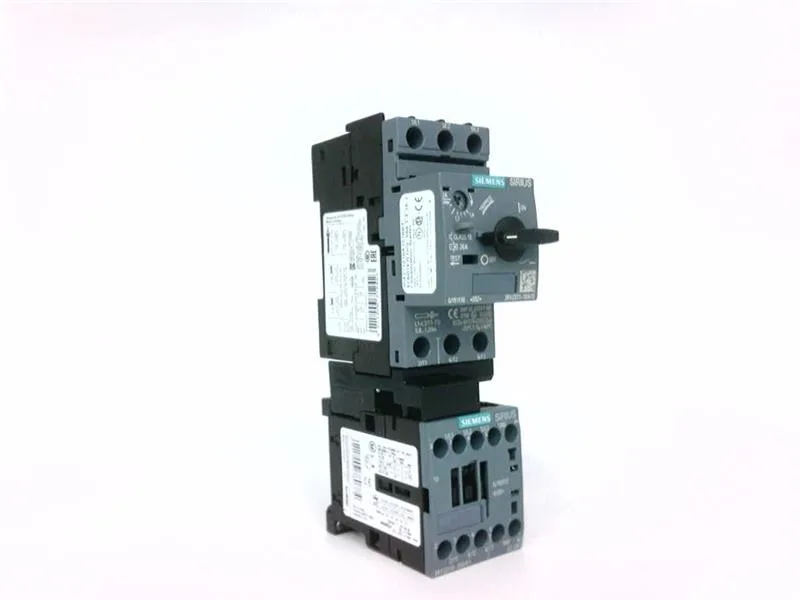

Siemens SIRIUS 3RA2110-1BA15-1BB4 direct on-line starter, size S00, 2 A at 400 V AC-3/AC-3e, CLASS 10 trip class, screw and snap-on 35 mm DIN rail mounting.
| Parameter | Value |
|---|---|
| Product designation | Direct (on-line) starter |
| Main circuit poles | 3 |
| Brand | SIRIUS |
| Load feeder size | S00 |
| Product design / construction | for standard rail or screw mounting |
| Circuit-breaker size | S00 |
| Included contactor (type) | 3RT2015-1BB41 |
| Included circuit-breaker (type) | 3RV2011-1BA10 |
| Included link module (type) | 3RA1921-1DA00 |
| Parameter | Value |
|---|---|
| Rated motor power at 400 V | 750 kW |
| Rated voltage at AC-3, max. | 690 V |
| Rated motor power at 460/480 V (hp) | 1 hp |
| Rated motor power at 575/600 V (hp) | 1.5 hp |
| Rated current at 480 V | 2 A |
| Rated current at 600 V | 2 A |
| Rated operating frequency | 50 ... 60 Hz |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated insulation voltage Ui (AC, pollution degree 3) | 690 V |
| Parameter | Value |
|---|---|
| Trip class | CLASS 10 |
| Short-circuit protection | Yes |
| Rated short-circuit current at 400 V (IEC 60947-4-1) | 150 000 A |
| Overload release setting range (current) | 1.4 ... 2 A |
| Overload release type | thermal (bimetallic) |
| Short-circuit trip type | magnetic |
| Duty / utilization type (IEC 60947-6-2) | 2 |
| Parameter | Value |
|---|---|
| Rated value | 24 ... 24 V |
| Control supply voltage type | DC |
| Auxiliary switch extension | Yes |
| Switching contact type | electromechanical |
| Parameter | Value |
|---|---|
| AS-Interface protocol support | No |
| Parameter | Value |
|---|---|
| Mounting / fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| Mounting position | vertical |
| Width | 45 mm |
| Height | 167 mm |
| Depth | 97 mm |
| Parameter | Value |
|---|---|
| Operating temperature range | -20 ... +60 °C |
| Storage temperature range | -50 ... +80 °C |
| Transport temperature range | -50 ... +80 °C |
| Shock resistance (IEC 60068-2-27) | 6g / 11 ms |
The 3RA2110-1BA15-1BB4: The supplied contactor is 3RT2015-1BB41, and the link module is 3RA1921-1DA00 — the assembly is pre-coordinated for thermal and magnetic protection.
Requires 50 mm clearance upwards, 20 mm forwards, 10 mm downwards, and 20 mm at the side for heat dissipation and wiring access.
Submit an RFQ for current pricing and availability — confirmed at quote time.
The substance prohibition date is 10/01/2009, indicating RoHS/REACH compliance. The part carries the SIRIUS brand and is designed to IEC/EN standards for motor starters.
