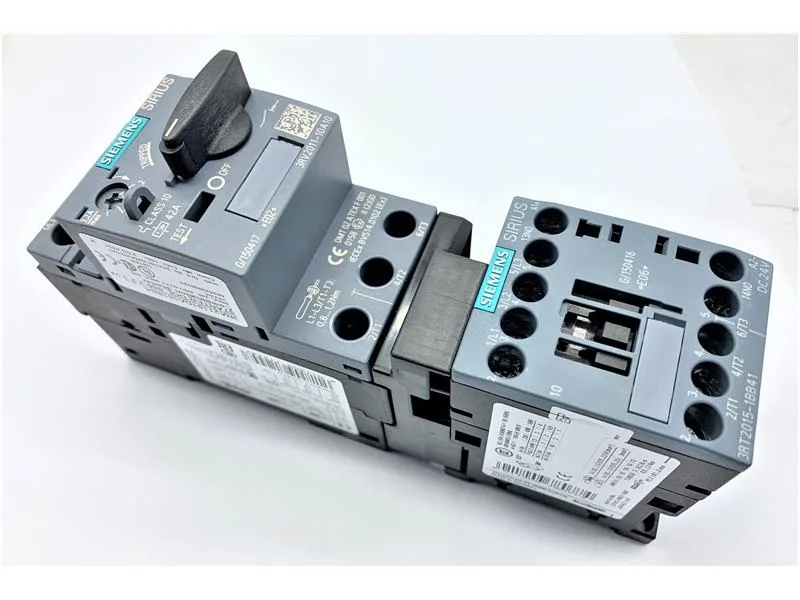

Siemens SIRIUS 3RA2110-1DA15-1BB4 direct online starter, Size S00, 3.2 A at 400 V AC-3, Class 10 trip, screw and snap-on 35 mm DIN rail mount.
| Parameter | Value |
|---|---|
| Product designation | Direct (on-line) starter |
| Main circuit poles | 3 |
| Brand | SIRIUS |
| Load feeder size | S00 |
| Product design / construction | for standard rail or screw mounting |
| Circuit-breaker size | S00 |
| Included contactor (type) | 3RT2015-1BB41 |
| Included circuit-breaker (type) | 3RV2011-1DA10 |
| Included link module (type) | 3RA1921-1DA00 |
| Parameter | Value |
|---|---|
| Rated motor power at 400 V | 1 100 kW |
| Rated voltage at AC-3, max. | 690 V |
| Rated motor power at 460/480 V (hp) | 2 hp |
| Rated motor power at 575/600 V (hp) | 3 hp |
| Rated current at 480 V | 3.2 A |
| Rated current at 600 V | 3.2 A |
| Rated operating frequency | 50 ... 60 Hz |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated insulation voltage Ui (AC, pollution degree 3) | 690 V |
| Parameter | Value |
|---|---|
| Trip class | CLASS 10 |
| Short-circuit protection | Yes |
| Rated short-circuit current at 400 V (IEC 60947-4-1) | 150 000 A |
| Overload release setting range (current) | 2.2 ... 3.2 A |
| Overload release type | thermal (bimetallic) |
| Short-circuit trip type | magnetic |
| Duty / utilization type (IEC 60947-6-2) | 2 |
| Parameter | Value |
|---|---|
| Rated value | 24 ... 24 V |
| Control supply voltage type | DC |
| Auxiliary switch extension | Yes |
| Switching contact type | electromechanical |
| Parameter | Value |
|---|---|
| AS-Interface protocol support | No |
| Parameter | Value |
|---|---|
| Mounting / fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| Mounting position | vertical |
| Width | 45 mm |
| Height | 167 mm |
| Depth | 97 mm |
| Parameter | Value |
|---|---|
| Operating temperature range | -20 ... +60 °C |
| Storage temperature range | -50 ... +80 °C |
| Transport temperature range | -50 ... +80 °C |
| Shock resistance (IEC 60068-2-27) | 6g / 11 ms |
The 3RA2110-1DA15-1BB4: Width is 45 mm, depth 97 mm, height 167 mm — the S00 footprint fits tightly in a 35 mm DIN rail enclosure; the vertical mounting position and 50 mm upward / 20 mm forward clearance keep the screw terminals accessible for the main circuit screw-type connections. Mounting is screw-and-snap-on onto 35 mm DIN rail — no separate adapter plate needed for the S00 frame.
The maximum operating voltage for AC-3 is 690 V.
