Siemens 3RA2115-1AD15-1BB4 — Motor Starters

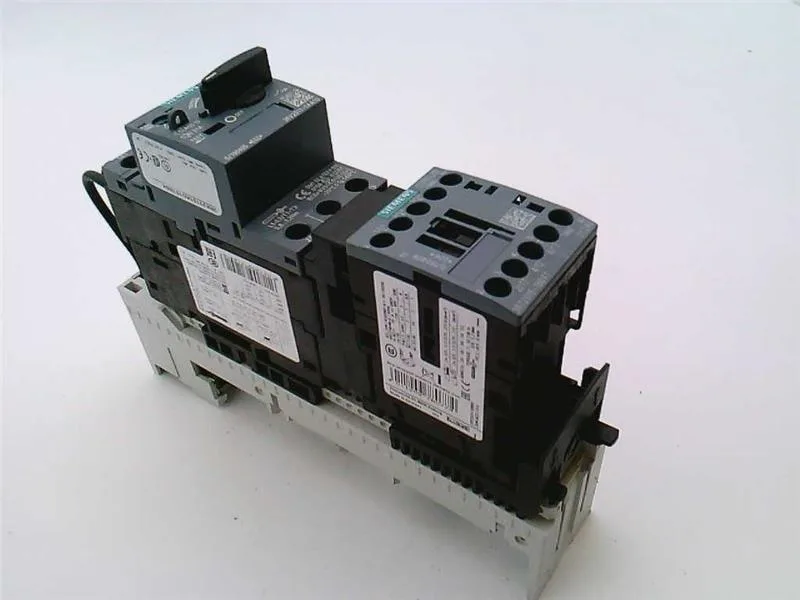

Siemens 3RA2115-1AD15-1BB4 SIRIUS Motor Starter

MPN3RA2115-1AD15-1BB4

Siemens SIRIUS 3RA2115-1AD15-1BB4 non-fused direct motor starter, size S00, 550 W at 400 V AC-3, Class 10 thermal overload, 24 V control, 45 mm width, 155.1 mm depth, supplied with contactor 3RT2015-1BB41 and link module 3RA1921-1DA00.

$72.39Ref. price · indicative, final on quote
Siemens 3RA2115-1AD15-1BB4 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RA2115-1AD15-1BB4 — Identification
ParameterValue
Product designationnon-fused motor starter 3RA2
Main circuit poles3
BrandSIRIUS
Load feeder sizeS00
Product design / constructiondirect starter
Circuit-breaker sizeS00
Included contactor (type)3RT2015-1BB41
Included circuit-breaker (type)3RV2011-1AA15
Included link module (type)3RA1921-1DA00
3RA2115-1AD15-1BB4 — Ratings & Performance
ParameterValue
Rated motor power at 400 V550 W
Operational current Ie, AC-3 at 400 V1.5 A
Rated voltage at AC-3, max.690 V
Rated motor power at 460/480 V (hp)0.75 hp
Rated motor power at 575/600 V (hp)0.75 hp
Rated current at 480 V1.6 A
Rated current at 600 V1.3 A
Rated operating frequency50 ... 60 Hz
Rated impulse withstand voltage (Uimp)6 kV
Rated insulation voltage Ui (AC, pollution degree 3)690 V
Mechanical service life, typ. (switching cycles)30 000 000
3RA2115-1AD15-1BB4 — Protection & Tripping
ParameterValue
Trip classCLASS 10
Short-circuit protectionYes
Rated short-circuit current at 400 V (IEC 60947-4-1)153 000 A
Overload release setting range (current)1.1 ... 1.6 A
Overload release typethermal (bimetallic)
Short-circuit trip typemagnetic
Duty / utilization type (IEC 60947-6-2)2
3RA2115-1AD15-1BB4 — Contacts & Control
ParameterValue
Rated value24 V
Auxiliary contacts, NO2
Auxiliary contacts, NC1
Auxiliary switch extensionYes
Switching contact typeelectromechanical
3RA2115-1AD15-1BB4 — Mechanical & Connection
ParameterValue
Main circuit connection typescrew-type terminals
Main contact conductor range (AWG)2x (20 ... 16), only for contactor 2x (18 ... 14), 2x 12
Mounting / fastening methodfor snapping onto 60 mm busbar systems
Mounting positionvertical
Width45 mm
Height200 mm
Depth155.1 mm
3RA2115-1AD15-1BB4 — Environmental
ParameterValue
Operating temperature range-20 ... +60 °C
Storage temperature range-50 ... +80 °C
Transport temperature range-55 ... +80 °C
Pollution degree3
Shock resistance (IEC 60068-2-27)6g / 11 ms

Product details

What ships in the carton — a complete kit

The 3RA2115-1AD15-1BB4: This 3RA2 non-fused motor starter ships as a pre-assembled direct starter: the supplied contactor is 3RT2015-1BB41, the link module is 3RA1921-1DA00, and the busbar adapter is 8US1251-5DS10. No holes in the box — the tech gets the contactor, overload relay, and mechanical interlink in one order code.

Motor power coverage — 550 W at 400 V, Class 10 trip

Rated 550 W at 400 V AC-3 (1.6 A at 480 V, 1.3 A at 600 V), this S00-frame starter covers small motors — pumps, fans, conveyors — up to 0.75 hp at 460/480 V and 575/600 V.

Snap-on busbar mounting — 60 mm systems

Fastens by snapping onto 60 mm busbar systems — no DIN rail required. The vertical mounting position and size S00 footprint (45 mm wide, 155.1 mm deep, 200 mm high) fit standard panel layouts. The supplied busbar adapter 8US1251-5DS10 handles the mechanical and electrical connection to the busbar.
