What the 90 mm width and S00 frame mean for your panel

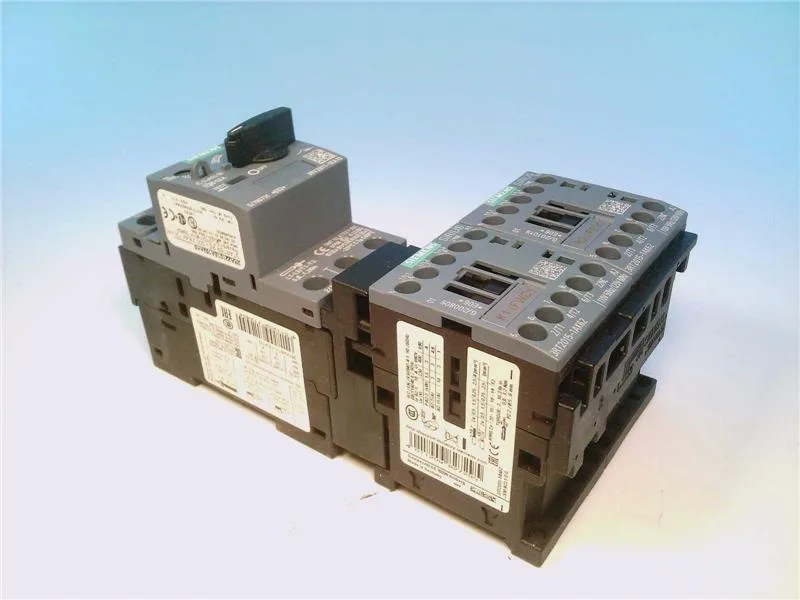

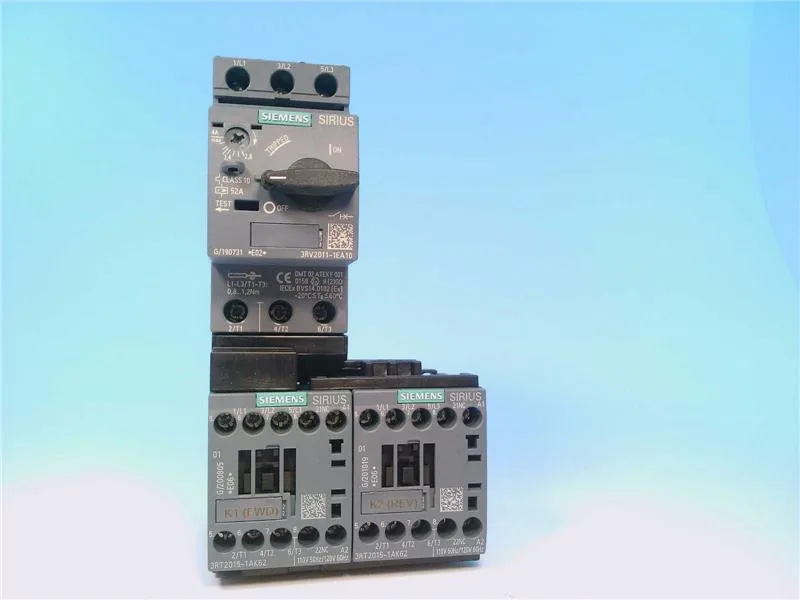

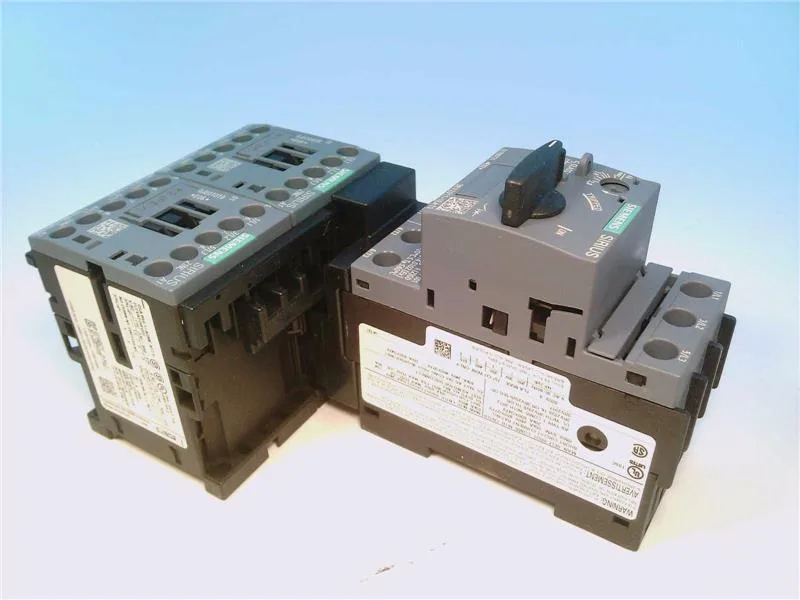

The 3RA2210-1EA15-2AK6: At 90 mm wide, this reversing starter occupies the same DIN-rail footprint as a single S00 contactor pair — the link module 3RA1921-1DA00 integrates the mechanical interlock so you don't lose a slot to external wiring. The 170 mm height and 97.1 mm depth fit standard 200 mm deep enclosures with clearance for the top-entry cables; the vertical mounting position is mandatory per the spec.
Class 10 trip and AC-3 switching — what drives the selection
Class 10 trip means the overload relay opens within 10 seconds at 600 % of the set current — this protects standard squirrel-cage motors during a stalled start without nuisance tripping on normal acceleration. The AC-3 rating at 690 V maximum covers switching of squirrel-cage motors during starting and plugging; the supplied contactor 3RT2015-1AK62 handles the make/break duty for reversing applications.
Lifecycle and supply posture — active, not legacy
Volume pricing and lead time confirmed at RFQ — no stock-holding claim on this page.
