Siemens 3RA2316-8XB30-1AB0 — Motor Starters

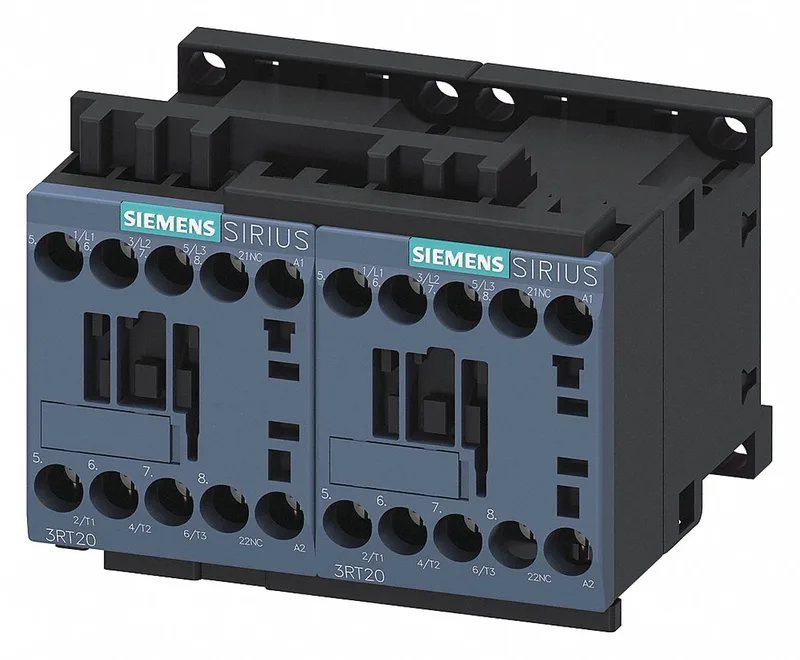

Siemens 3RA2316-8XB30-1AB0 SIRIUS Reversing Contactor Assemb

MPN3RA2316-8XB30-1AB0
Active

Siemens SIRIUS S00 reversing contactor assembly, 3RA2316-8XB30-1AB0, 4 kW at 400 V AC-3, includes two 3RT2016-1AB02 contactors, screw-type terminals, snap-on 35 mm DIN rail mount.

$54.61Ref. price · indicative, final on quote
Siemens 3RA2316-8XB30-1AB0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RA2316-8XB30-1AB0 — Identification
ParameterValue
Product designationReversing contactor assembly
Main circuit poles3
BrandSIRIUS
Reference designation (IEC 81346-2)Q
3RA2316-8XB30-1AB0 — Ratings & Performance
ParameterValue
Rated motor power at 400 V4 kW
Rated voltage at AC-3, max.690 V
Rated motor power at 460/480 V (hp)5 hp
Rated motor power at 575/600 V (hp)7.5 hp
Rated current at 480 V7.6 A
Rated current at 600 V9 A
3RA2316-8XB30-1AB0 — Contacts & Control
ParameterValue
Rated voltage range at 50 Hz24 V
Control supply voltage typeAC
Auxiliary switch extensionYes
3RA2316-8XB30-1AB0 — Communication
ParameterValue
AS-Interface protocol supportNo
3RA2316-8XB30-1AB0 — Mechanical & Connection
ParameterValue
Mounting / fastening methodscrew and snap-on mounting onto 35 mm DIN rail
Mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
Width90 mm
Height68 mm
Depth73 mm
3RA2316-8XB30-1AB0 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C

Product details

The Siemens 3RA2316-8XB30-1AB0 is a SIRIUS reversing contactor assembly in frame size S00. It contains two 3RT2016-1AB02 contactors pre-wired for direction reversal of a three-phase motor. Rated 4 kW at 400 V AC-3, it also carries 5.5 kW at 690 V and 7.5 hp at 575/600 V.

The AC-3 motor switching rating at 400 V is 4 kW — that is the load current the assembly can make and break under full motor load, not just continuous carry. At 480 V the rated current is 7.6 A.

Physical footprint

Width 90 mm, height 68 mm, depth 73 mm. Clearance around the unit: 6 mm upwards, forwards, downwards, and to the side; zero clearance backwards — it sits flush against the mounting surface.

Frequently asked questions

What are the key motor ratings for 3RA2316-8XB30-1AB0?

At 400 V AC-3 it is rated 4 kW. At 690 V AC-3 it is rated 5.5 kW. Horsepower ratings include 2 hp at 200/208 V, 3 hp at 220/230 V, 5 hp at 460/480 V, and 7.5 hp at 575/600 V.

Where can I buy 3RA2316-8XB30-1AB0?

This reversing contactor assembly is sourced and quoted to order through independent distribution channels. Submit an RFQ for current availability and pricing.

What contactors are inside the 3RA2316-8XB30-1AB0 assembly?

It ships with two 3RT2016-1AB02 contactors, pre-wired for reversing duty.

MPN
3RA2316-8XB30-1AB0
