Siemens 3RA2316-8XB34-1CK2 — Motor Starters

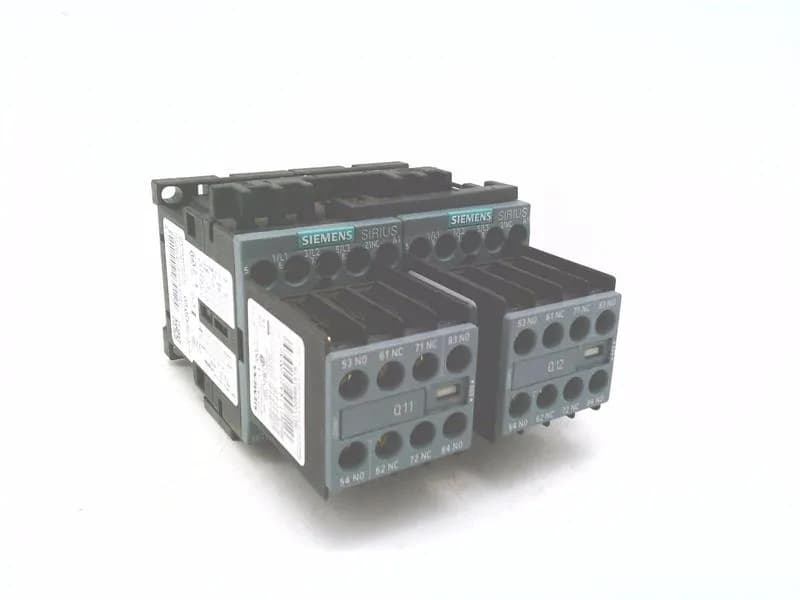

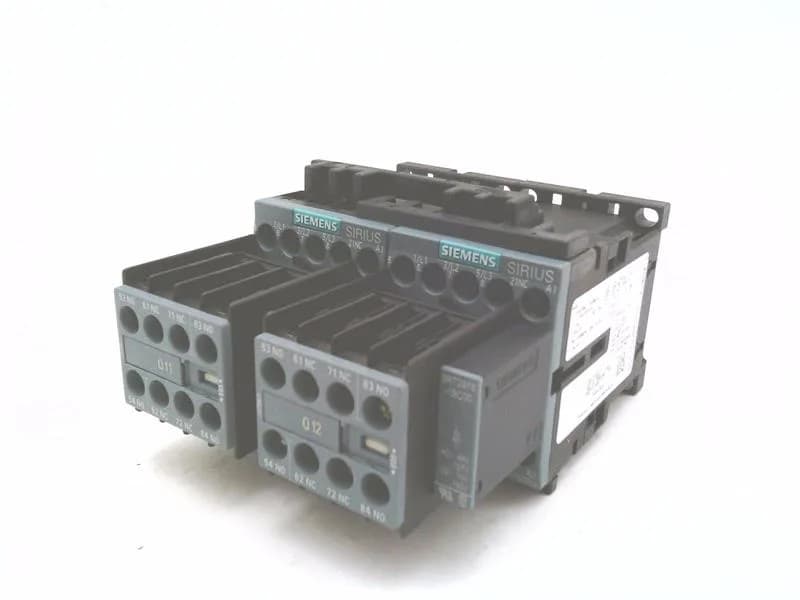

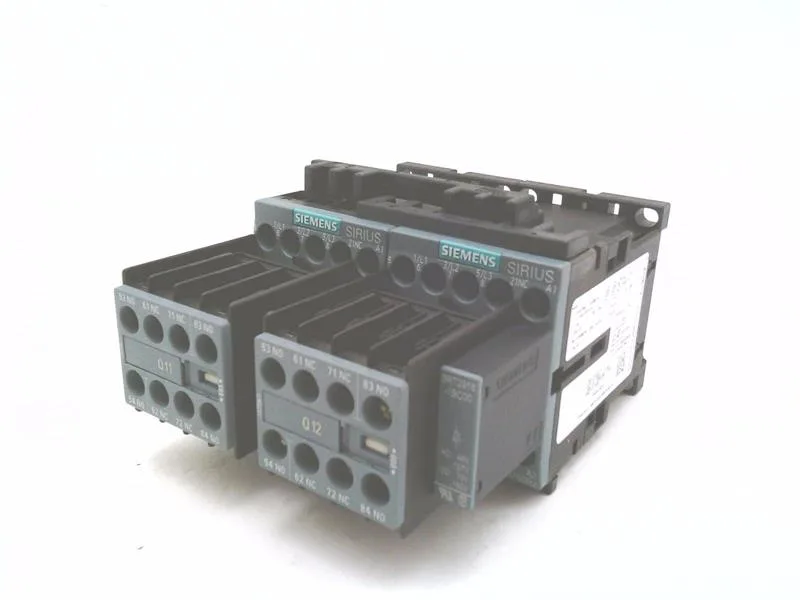

Siemens 3RA2316-8XB34-1CK2 SIRIUS reversing contactor, S00

MPN3RA2316-8XB34-1CK2
Active

Siemens SIRIUS 3RA2316-8XB34-1CK2 reversing contactor assembly, S00 frame, 4 kW at 400 V AC-3, screw terminals, 90 mm width, 130 mm depth, 68 mm height, snap-on 35 mm DIN rail.

$90.17Ref. price · indicative, final on quote
Siemens 3RA2316-8XB34-1CK2 datasheet (PDF)
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

3RA2316-8XB34-1CK2 — Identification
ParameterValue
Product designationReversing contactor assembly
Main circuit poles3
BrandSIRIUS
Reference designation (IEC 81346-2)Q

Ratings & Performance

3RA2316-8XB34-1CK2 — Ratings & Performance
ParameterValue
Rated motor power at 400 V4 kW
Rated motor power at 460/480 V (hp)5 hp
Rated motor power at 575/600 V (hp)7.5 hp
Rated current at 480 V7.6 A
Rated current at 600 V9 A

Contacts & Control

3RA2316-8XB34-1CK2 — Contacts & Control
ParameterValue
Rated voltage range at 50 Hz120 V
Control supply voltage typeAC
Auxiliary switch extensionYes

Communication

3RA2316-8XB34-1CK2 — Communication
ParameterValue
AS-Interface protocol supportNo

Mechanical & Connection

3RA2316-8XB34-1CK2 — Mechanical & Connection
ParameterValue
Main contact conductor range (AWG)2x (20 ... 16), 2x (18 ... 14)
Mounting / fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail
Mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
Width90 mm
Height68 mm
Depth130 mm

Environmental

3RA2316-8XB34-1CK2 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C

Product details

AC-4 switching and mechanical life

The 3RA2316-8XB34-1CK2: The contactor withstands shock loads of 10.5 g at 5 ms and 6.6 g at 10 ms in both AC and DC directions, which is relevant for installations on mobile equipment or near heavy impact machinery.

Mounting flexibility and terminal details

Dimensions: 90 mm wide, 130 mm deep, 68 mm high — the S00 footprint is the smallest SIRIUS contactor frame, saving DIN rail space in dense panels.

Sourcing and lifecycle — current production

RoHS compliance date is listed as 07/01/2006 (the EU RoHS effective date), confirming the assembly meets the substance restrictions for sale in the European market.

Frequently asked questions

What is the 3RA2316-8XB34-1CK2 used for?

It is a reversing contactor assembly used to control the direction of three-phase motors — forward/reverse for conveyors, hoists, pumps, fans, and any application that needs to swap rotation without a separate reversing starter.
