Siemens 3RA2316-8XB37-1CK2 — Motor Starters

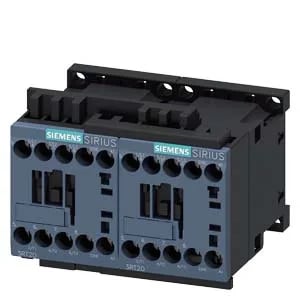

Siemens 3RA2316-8XB37-1CK2 Reversing Contactor, S00

MPN3RA2316-8XB37-1CK2

Siemens SIRIUS 3RA2316-8XB37-1CK2 reversing contactor assembly, size S00, 4 kW at 400 V AC-3, 3 poles per direction, screw terminals, 35 mm DIN rail.

Siemens 3RA2316-8XB37-1CK2 datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

3RA2316-8XB37-1CK2 — Identification
ParameterValue
Product designationReversing contactor assembly
Main circuit poles3
BrandSIRIUS
Reference designation (IEC 81346-2)Q

Ratings & Performance

3RA2316-8XB37-1CK2 — Ratings & Performance
ParameterValue
Rated motor power at 400 V4 kW
Rated voltage at AC-3, max.690 V
Rated motor power at 460/480 V (hp)5 hp
Rated motor power at 575/600 V (hp)7.5 hp
Rated current at 480 V7.6 A
Rated current at 600 V9 A

Contacts & Control

3RA2316-8XB37-1CK2 — Contacts & Control
ParameterValue
Rated voltage range at 50 Hz120 V
Control supply voltage typeAC
Auxiliary switch extensionYes

Communication

3RA2316-8XB37-1CK2 — Communication
ParameterValue
AS-Interface protocol supportNo

Mechanical & Connection

3RA2316-8XB37-1CK2 — Mechanical & Connection
ParameterValue
Mounting / fastening methodscrew and snap-on mounting onto 35 mm DIN rail
Mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
Width90 mm
Height68 mm
Depth130 mm

Environmental

3RA2316-8XB37-1CK2 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C

Product details

Motor power across the voltage range

The 3RA2316-8XB37-1CK2: At 480 V the rated current is 7.6 A; at 600 V it's 9 A, so the same assembly handles a range of motor frame sizes depending on your supply voltage.

Panel fit and mounting flexibility

Size S00 frame measures 90 mm wide, 68 mm high, 130 mm deep — compact enough for dense panel layouts, and it mounts on 35 mm DIN rail with either screw or snap-on fastening.

Wiring and terminal details

Both the magnet coil and main current circuit use screw-type terminals — no special tooling needed for field replacement or retrofit.

MPN
3RA2316-8XB37-1CK2
