SIRIUS S00 reversing contactor — what ships and how it mounts

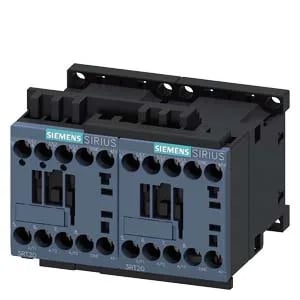

The 3RA2316-8XE30-1BB4 is a factory-assembled reversing contactor from the SIRIUS S00 frame, shipping with two 3RT2016 contactors (one with a mechanical interlock kit) and the 3RA2913-2AA2 reversing assembly hardware already fitted.
Motor ratings across the voltage band
Horsepower ratings cover 2 hp at 200/208 V up through 7.5 hp at 575/600 V, matching common North American motor frame sizes.
Termination and wiring — screw terminals, dual-wire capacity
Both the main current circuit and the magnet coil use screw-type terminals — no cage-clamp or spring terminals here. For AWG wire, the main contact terminals accept 2x (20 to 16) and 2x (18 to 14) — standard for motor branch circuits up to the rated current.
Environmental limits and clearance spacing
Clearance to adjacent components: 6 mm upwards, forwards, downwards, and to the side; 0 mm backwards — the back face can sit flush against the mounting surface or back panel. The assembly withstands 10.5g shock for 5 ms and 6.6g for 10 ms in both AC and DC axes — sufficient for machine-mounted applications on presses, conveyors, and packaging equipment.
Lifecycle and compliance — current production, RoHS dated
RoHS compliance is dated 10/01/2009, covering the EU RoHS directive substance prohibitions.
