Siemens 3RA2317-8XB30-1AK6 — Motor Starters

Siemens 3RA2317-8XB30-1AK6 SIRIUS Reversing Contactor, 5.5 k

MPN3RA2317-8XB30-1AK6
Active

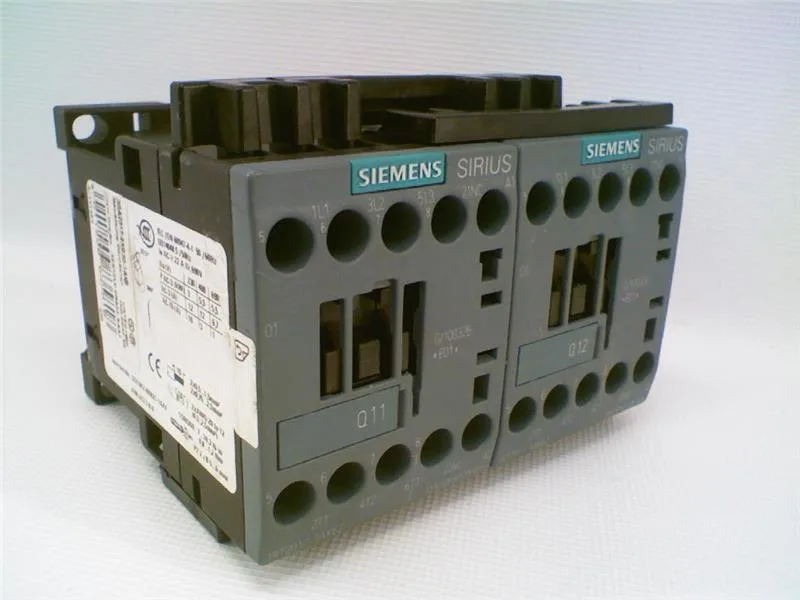

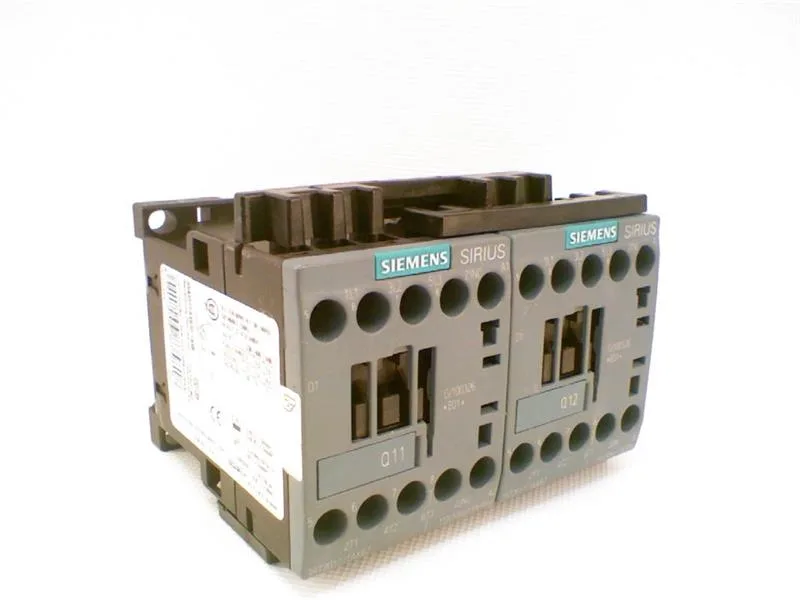

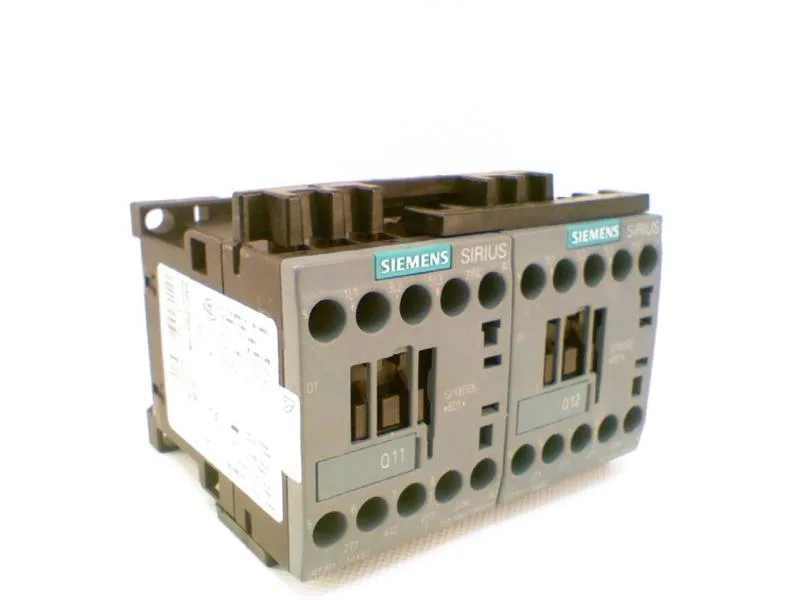

Siemens SIRIUS reversing contactor assembly, size S00, 5.5 kW at 400 V AC-3, screw-type terminals, snap-on 35 mm DIN rail, supplied with two 3RT2017-1AK62 contactors.

$63.50Ref. price · indicative, final on quote
Siemens 3RA2317-8XB30-1AK6 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RA2317-8XB30-1AK6 — Identification
ParameterValue
Product designationReversing contactor assembly
Main circuit poles3
BrandSIRIUS
Reference designation (IEC 81346-2)Q
3RA2317-8XB30-1AK6 — Ratings & Performance
ParameterValue
Rated motor power at 400 V5.5 kW
Rated voltage at AC-3, max.690 V
Rated motor power at 460/480 V (hp)7.5 hp
Rated motor power at 575/600 V (hp)10 hp
Rated current at 480 V11 A
Rated current at 600 V11 A
3RA2317-8XB30-1AK6 — Contacts & Control
ParameterValue
Rated voltage range at 50 Hz110 V
Control supply voltage typeAC
Auxiliary switch extensionYes
3RA2317-8XB30-1AK6 — Communication
ParameterValue
AS-Interface protocol supportNo
3RA2317-8XB30-1AK6 — Mechanical & Connection
ParameterValue
Main contact conductor range (AWG)2x (20 ... 16), 2x (18 ... 14)
Mounting / fastening methodscrew and snap-on mounting onto 35 mm DIN rail
Mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
Width90 mm
Height68 mm
Depth73 mm
3RA2317-8XB30-1AK6 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C

Product details

Part identity and deployment context

The Siemens SIRIUS 3RA2317-8XB30-1AK6 is a factory-assembled reversing contactor assembly in frame size S00, rated for 5.5 kW motor switching at 400 V AC-3 duty. It ships with two 3RT2017-1AK62 contactors pre-wired for mechanical and electrical interlocking, eliminating the need for field assembly of the reversing pair.

The 5.5 kW rating at 400 V AC-3 defines the maximum three-phase induction motor load this reversing contactor can switch under standard starting conditions. At 460/480 V the assembly is rated 7.5 hp, and at 575/600 V it is rated 10 hp, per the datasheet. The main current circuit uses screw-type terminals, accepting solid conductors up to 2x 4 mm² or stranded up to 2x 2.5 mm², which covers common motor feeder cable sizes. Mechanical shock resistance is specified at 11.4 g for 5 ms and 7.3 g for 10 ms on both AC and DC axes, indicating robustness for applications with vibration.

Frequently asked questions

What is the closest functional second-source for 3RA2317-8XB30-1AK6?

The 3RT6017-1AF01 is a similar SIRIUS contactor but is a standalone unit, not a factory-assembled reversing pair. The 3RA2317-8XB30-1AK6 includes pre-wired mechanical interlocking that a field-assembled pair of 3RT6017-1AF01 units would require additional hardware to replicate.

What are the key dimensions of 3RA2317-8XB30-1AK6?

Width 90 mm, depth 73 mm, height 68 mm.

What conductor sizes does the screw terminal accept?

Solid conductors: 2x (0.5 to 1.5 mm²), 2x (0.75 to 2.5 mm²), and 2x 4 mm². Stranded: 2x (0.5 to 1.5 mm²) and 2x (0.75 to 2.5 mm²).

Will 3RA2317-8XB30-1AK6 drop into a panel specified around 3RT6017-1AF01 without rewiring?

No. The 3RA2317-8XB30-1AK6 is a reversing assembly with pre-wired interlocking; a panel designed for standalone 3RT6017-1AF01 units would need rewiring to accommodate the assembly's fixed wiring and different terminal layout.

Where can I buy 3RA2317-8XB30-1AK6?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
