Siemens 3RA2317-8XB30-1BB4 — Motor Starters

Siemens 3RA2317-8XB30-1BB4 SIRIUS Reversing Contactor, 5.5 k

MPN3RA2317-8XB30-1BB4
Active

Siemens SIRIUS reversing contactor assembly, 3RA2317-8XB30-1BB4, Size S00, 5.5 kW at 400 V AC-3, 24 V DC coil, screw terminals, snap-on 35 mm DIN rail.

$68.58Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3RA2317-8XB30-1BB4 — Identification
ParameterValue
Product designationReversing contactor assembly
Main circuit poles3
BrandSIRIUS
Reference designation (IEC 81346-2)Q
3RA2317-8XB30-1BB4 — Ratings & Performance
ParameterValue
Rated motor power at 400 V5.5 kW
Rated voltage at AC-3, max.690 V
Rated motor power at 460/480 V (hp)7.5 hp
Rated motor power at 575/600 V (hp)10 hp
Rated current at 480 V11 A
Rated current at 600 V11 A
3RA2317-8XB30-1BB4 — Contacts & Control
ParameterValue
Control supply voltage typeDC
Auxiliary switch extensionYes
3RA2317-8XB30-1BB4 — Communication
ParameterValue
AS-Interface protocol supportNo
3RA2317-8XB30-1BB4 — Mechanical & Connection
ParameterValue
Main contact conductor range (AWG)2x (20 ... 16), 2x (18 ... 14)
Mounting / fastening methodscrew and snap-on mounting onto 35 mm DIN rail
Mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
Width90 mm
Height68 mm
Depth73 mm
3RA2317-8XB30-1BB4 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C

Product details

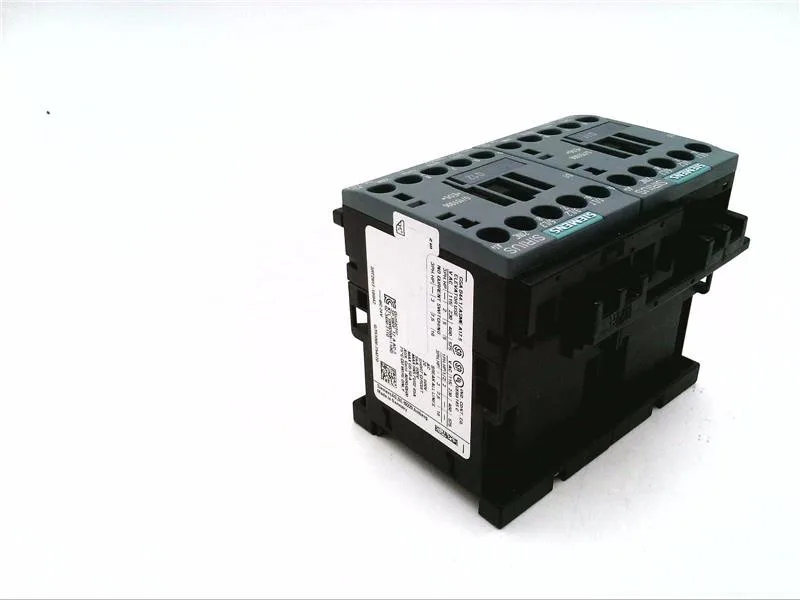

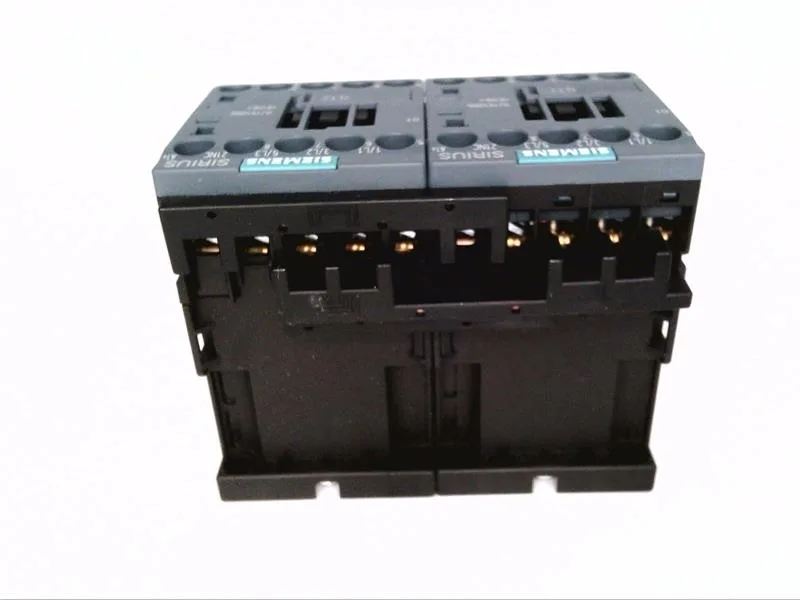

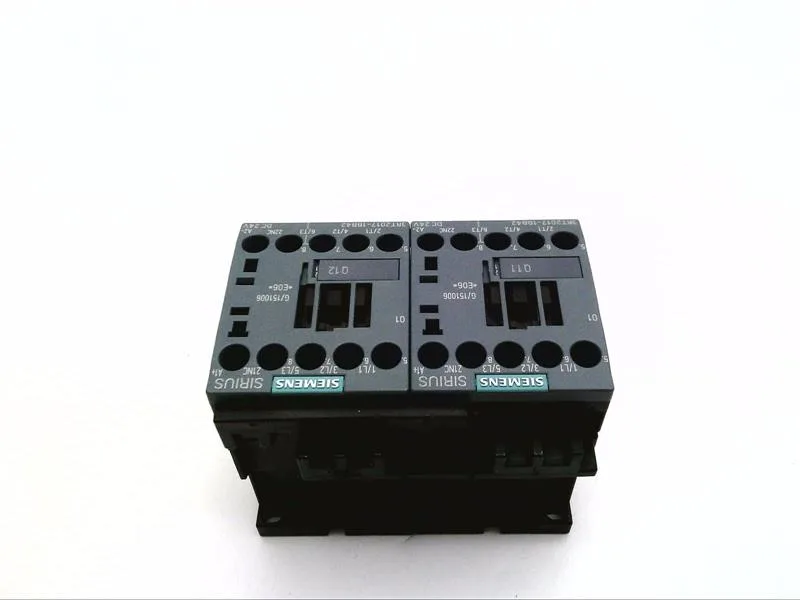

The Siemens SIRIUS 3RA2317-8XB30-1BB4 is a factory-assembled reversing contactor assembly — two mechanically interlocked contactors in one package, so you get forward/reverse control of a three-phase motor without building the interlock yourself. It ships with two 3RT2017-1BB42 contactors already wired and gated, sized for a motor load up to 5.5 kW at 400 V AC-3 (11 A at 480 V). The 24 V DC coil keeps it compatible with standard PLC or relay outputs.

Size S00 footprint (90 mm wide, 68 mm tall, 73 mm deep) fits the standard compact contactor slot. Clearance: 6 mm upward, forward, downward, and sideways; zero backward clearance needed, so you can push it flush against a gland plate or wireway.

AC-3 maximum operating voltage is 690 V, so it also handles 480 V and 600 V motor circuits within the current limits. At 460/480 V it is rated 7.5 hp; at 575/600 V, 10 hp.

Frequently asked questions

What is the operating temperature range for this reversing contactor?

It operates from -25 °C to +60 °C and can be stored from -55 °C to +80 °C.

What wire sizes does the 3RA2317-8XB30-1BB4 accept?

The screw terminals accept 2x (0.5 to 1.5 mm²), 2x (0.75 to 2.5 mm²), or 2x 4 mm² solid or stranded conductors.

Where can I buy 3RA2317-8XB30-1BB4 and get current pricing?

This part is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
