150 x 160 x 152 mm reversing contactor assembly

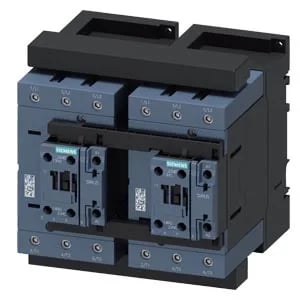

The Siemens 3RA2347-8XB30-1AL2 is a SIRIUS reversing contactor assembly — a pre-wired pair of contactors with mechanical interlock for forward/reverse motor control. It ships with two 3RT2047-1AL20 contactors already installed and wired, saving panel build time. The 150 mm width and 152 mm depth fit standard 600 mm deep enclosures with room for gland plates.
Clearance: 10 mm upwards, forwards, downwards, and to the side; 0 mm backwards. That 0 mm rear clearance means it can sit flush against the back panel, useful when you need to stack devices tightly.
Listed as current production. This is a standard SIRIUS catalog item, not a phase-out or NRND part. Compliance: RoHS substance prohibition date 03/01/2017 applies.
