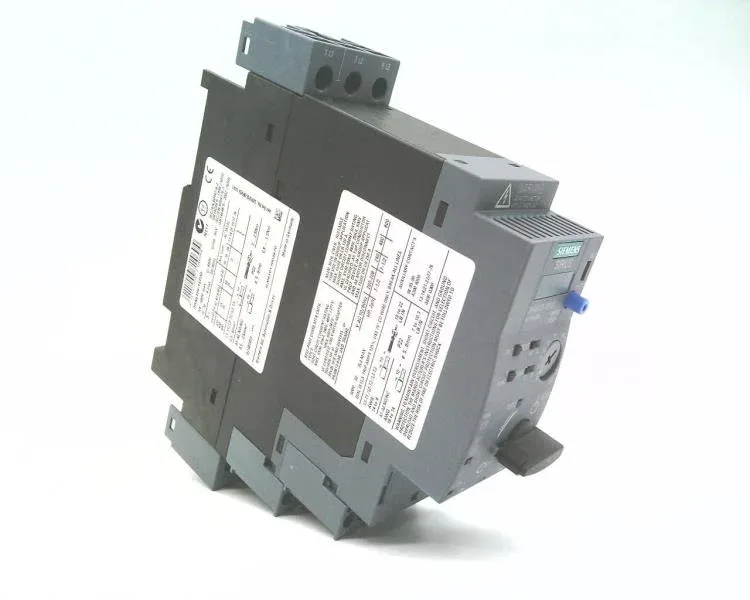

Siemens 3RA6120-1EP32
MPN3RA6120-1EP32
Active
SIRIUS Compact load feeder DOL starter 690 V 110...240 V AC/DC 50...60 Hz 8...32 A IP20 Connection main circuit: screw terminal Connection auxiliary circuit: screw terminal
$417.83 – $1,115.99Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | compact starter |
| Main circuit poles | 3 |
| Brand | SIRIUS |
| Product design / construction | direct starter |
| Reference designation (IEC 81346-2) | Q |
Ratings & Performance
| Parameter | Value |
|---|---|
| Rated motor power at 400 V | 15 000 W |
| Rated motor power at 460/480 V (hp) | 20 hp |
| Rated current at 480 V | 32 A |
| Rated impulse withstand voltage (Uimp) | 6 000 V |
Protection & Tripping
| Parameter | Value |
|---|---|
| Trip class | CLASS 10 and 20 adjustable |
| Short-circuit protection | Yes |
| Overload release setting range (current) | 8 ... 32 A |
| Duty / utilization type (IEC 60947-6-2) | continous operation according to IEC 60947-6-2 |
Contacts & Control
| Parameter | Value |
|---|---|
| Rated voltage range at 50 Hz | 240 V |
| Auxiliary contacts, NO | 1 |
| Auxiliary contacts, NC | 1 |
| Auxiliary switch extension | Yes |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Mounting / fastening method | screw and snap-on mounting |
| Mounting position | any |
| Width | 45 mm |
| Height | 170 mm |
| Depth | 165 mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -20 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Transport temperature range | -55 ... +80 °C |
| Pollution degree | 3 |
MPN
3RA6120-1EP32
