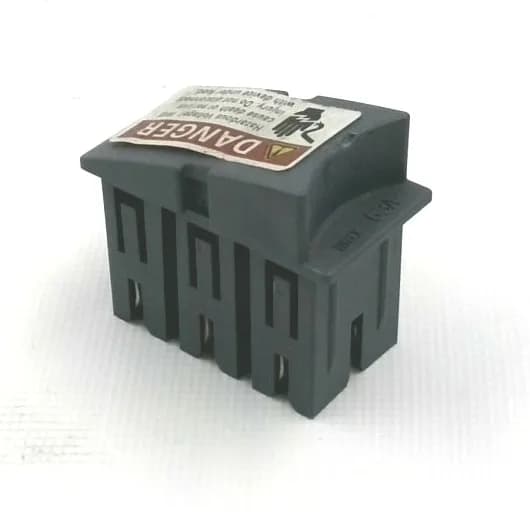

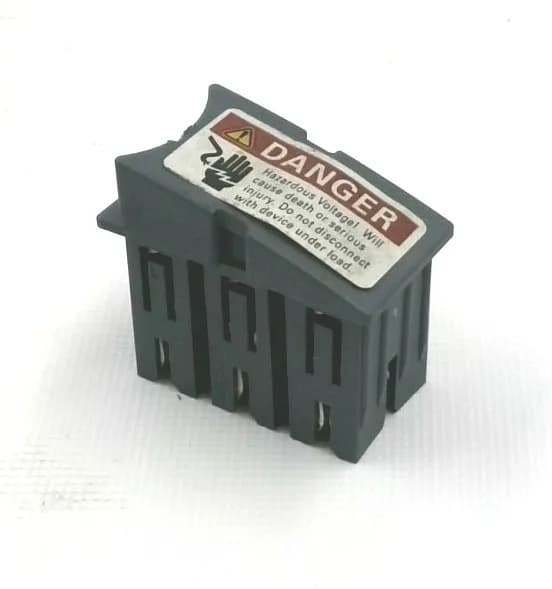

Siemens 3RA6890-1AB
MPN3RA6890-1AB
Active
Extension connector between 2 extension blocks
$29.21Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | expansion plug for 3RA19 |
| Brand | SIRIUS |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Mounting / fastening method | plug-in fixing |
| Width | 23mm |
| Height | 42mm |
| Depth | 33mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -20 ... +60°C |
| Storage temperature range | -55 ... +80°C |
| Transport temperature range | -55 ... +80°C |
| Pollution degree | 3 |
Other specifications
| Parameter | Value |
|---|---|
| Shock resistance | Semi-sinusoidal a = 6 m/s2 at 10 ms; 3 pos. and 3 neg. Shock in all axes |
| Vibration resistance | f = 4 to 5.8 Hz; d = 15 mm; f = 5.8 to 500 Hz; a = 2 m / s2 10 cycles |
| According to EN 61346-2 | X |
| According to IEC 81346-2 | X |
| Operational current at AC at 400 v rated value | 63A |
| Installation altitude at height above sea level maximum | 2 000m |
MPN
3RA6890-1AB
