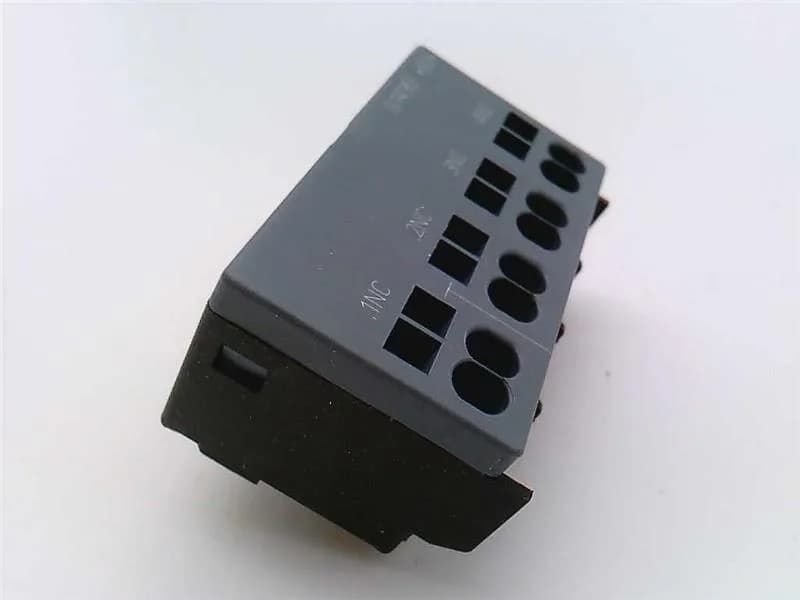

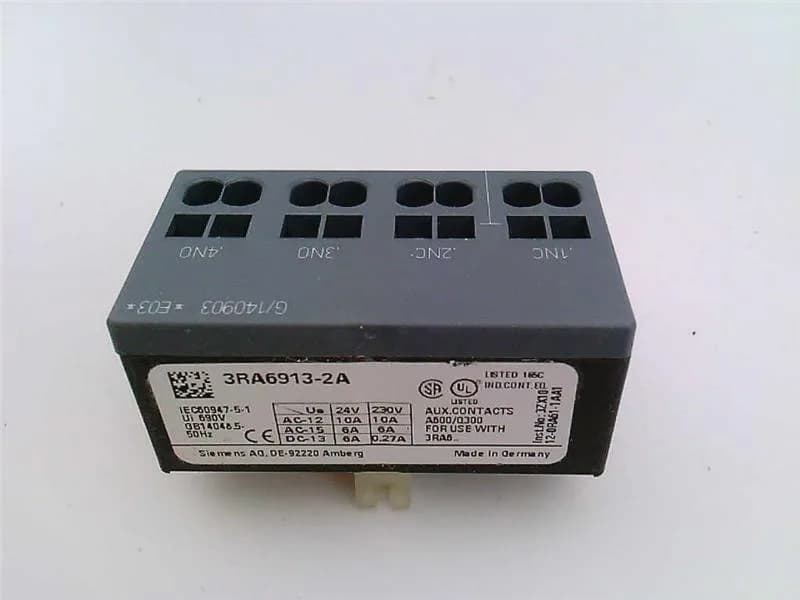

Compact auxiliary switch for SIRIUS feeder assemblies
The 3RA6913-2A: It measures just 45 mm wide by 32 mm tall by 25 mm deep — a footprint that fits neatly on a DIN rail alongside the main contactor or motor starter without crowding the panel.
Wire termination and conductor range
For AWG builds, the same terminals handle 2x 24 to 14 AWG — no special tools beyond a standard screwdriver for the spring release.
Environmental limits and touch safety
Rated IP20 on the front with finger-safe touch protection per IEC 60529 — safe for open-panel installation where operators may reach near live terminals. Operates from -20 to +60 °C with 10–90% relative humidity; storage and transport range extends from -55 to +80 °C.
