Siemens 3RA6920-1A
MPN3RA6920-1A
Active

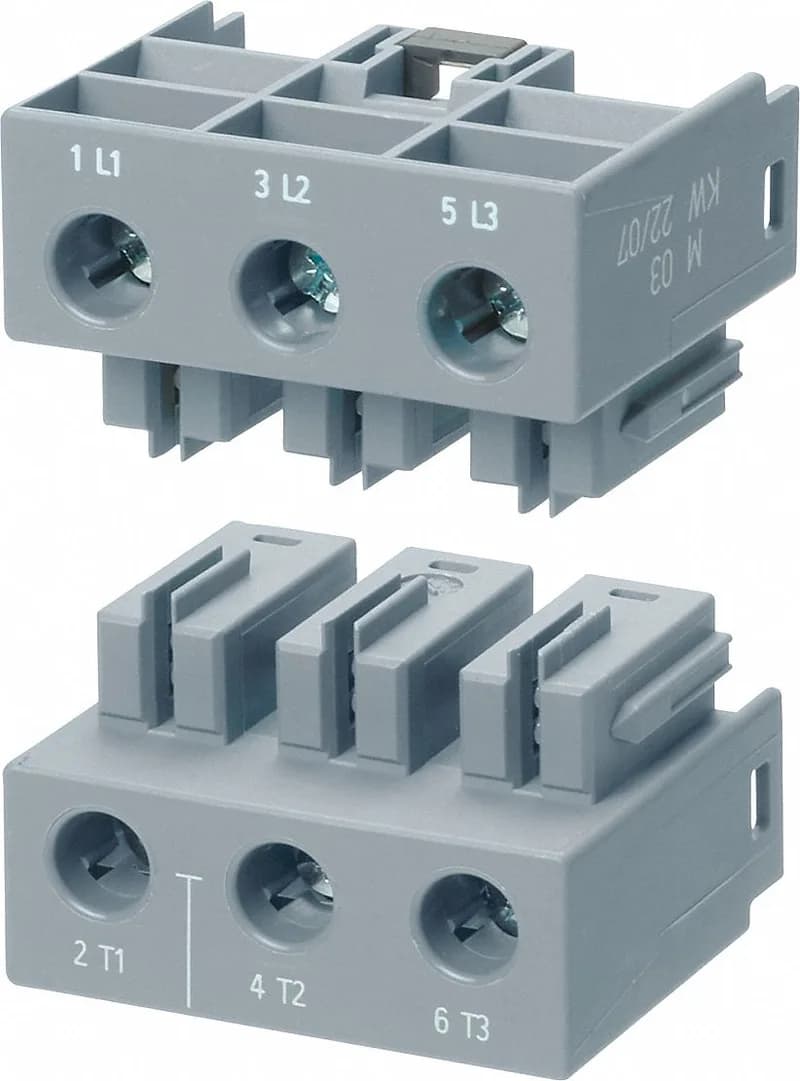

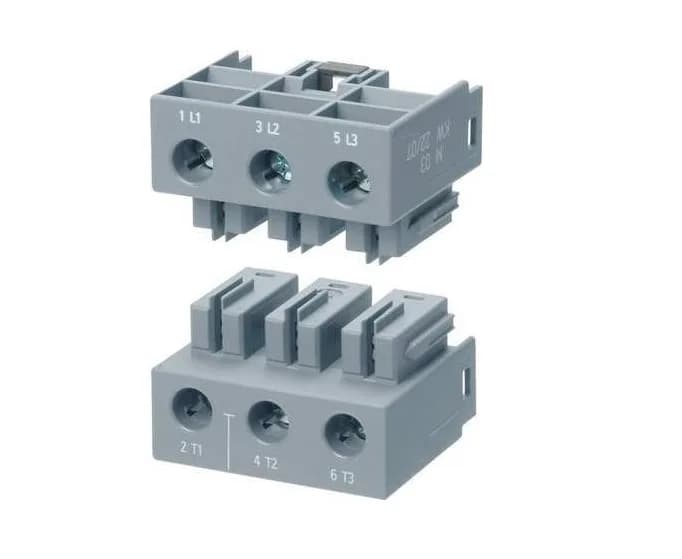

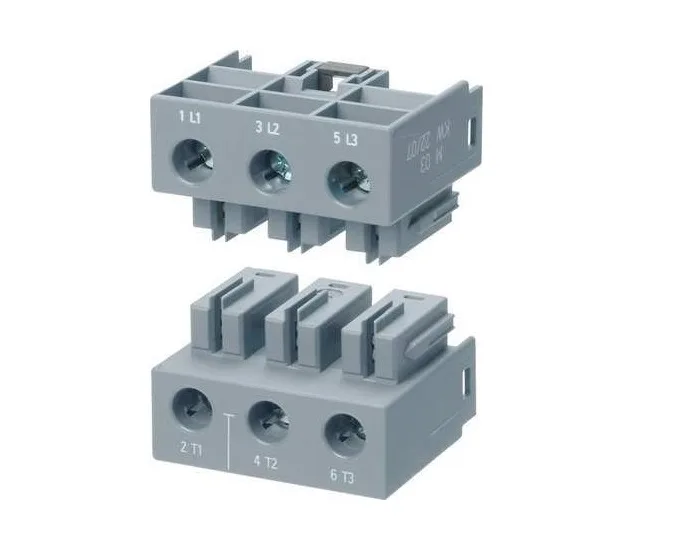

Main circuit terminals (input and output side) Connection main circuit: screw terminal 2 main circuit terminals per package (1 x input side 1 x output side differ)
$36.83 – $109.71Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | main circuit terminals (ingoing as well as outgoing) |
| Brand | SIRIUS |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Main contact conductor range (AWG) | up to 12 A: 2x (16 ... 14), 2x (14 ... 10), 1x 8, up to 32 A: 2x (14 ... 10), 1x 8 |
| Width | 45mm |
| Height | 32mm |
| Depth | 30mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -20 ... +60°C |
| Storage temperature range | -55 ... +80°C |
| Transport temperature range | -55 ... +80°C |
Other specifications
| Parameter | Value |
|---|---|
| Solid | up to 12 A: 2x (1.5 ... 2.5 mm²), 2x (2.5 ... 6 mm²), up to 32 A: 2x (2.5 ... 6 mm²) |
| Stripped length | 10mm |
| For main current circuit | screw-type terminals |
| For auxiliary and control circuit | screw-type terminals |
| Relative humidity during operation | 10 ... 90% |
| Reference code according to EN 61346-2 | X |
| Finely stranded with core end processing | up to 12 A: 2x (1.5 ... 2.5 mm²), 2x (2.5 ... 6 mm²) up to 32 A: 2x (2.5 ... 6 mm²) |
| Design of Screw-Type connection for auxiliary contacts | M6 |
| Tightening torque for auxiliary contacts with Screw-Type terminals | 2 ... 2.5N·m |
MPN
3RA6920-1A
