Siemens 3RB2113-4NB0 — Overload Relays

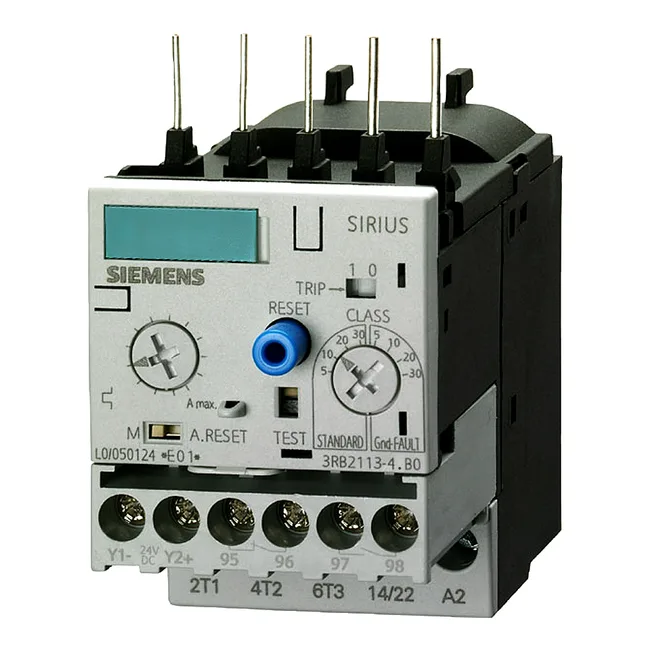

Siemens 3RB2113-4NB0 SIRIUS solid-state overload relay, Clas

MPN3RB2113-4NB0

Siemens SIRIUS solid-state overload relay, 3RB2113-4NB0, trip class 5E/10E/20E/30E adjustable, contactor mounting, 690 V AC-3 max, IP20 front.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RB2113-4NB0 — Identification
ParameterValue
Product brand nameSIRIUS
Product designationsolid-state overload relay
Combinable contactor sizesS00
3RB2113-4NB0 — Protection & Trip
ParameterValue
Trip classCLASS 5E, 10E, 20E and 30E adjustable
3RB2113-4NB0 — Electrical (main circuit)
ParameterValue
Poles (main circuit)3
Rated surge withstand voltage6 kV
Main current circuitscrew-type terminals
3RB2113-4NB0 — Auxiliary contacts
ParameterValue
Auxiliary contacts: NO1
Auxiliary contacts: NC1
Auxiliary switch short-circuit protection (required fuse)fuse gL/gG: 6 A
Switching current at 24 V2 A
Switching current at 60 V0.55 A
Switching current at 110 V0.3 A
Switching current at 120 V4 A
Switching current at 125 V0.3 A
Switching current at 220 V0.11 A
Switching current at 230 V3 A
3RB2113-4NB0 — Connection & Mounting
ParameterValue
Mounting positionany
Conductor cross-section: solid0.5 ... 4 mm², 2x (0.5 ... 2.5 mm²)
Conductor cross-section: finely stranded with ferrule0.5 ... 2.5 mm², 2x (0.5 ... 1.5 mm²)
3RB2113-4NB0 — Environmental
ParameterValue
Operating temperature-25 ... +60 °C
Storage temperature-40 ... +80 °C
Transport temperature-40 ... +80 °C
Relative humidity, operating100 %
Shock resistance15g / 11 ms
3RB2113-4NB0 — Mechanical
ParameterValue
Width45 mm
Height64 mm
Depth73 mm
3RB2113-4NB0 — Specifications
ParameterValue
Type Of ProtectionPTB 06 ATEX 3001 Ex II (2) GD

Product details

The solid-state design means no moving contacts to wear out, and power dissipation is low: 0.05 W at AC in hot operating state, so it won't cook adjacent components in a dense panel. Terminals accept solid conductors from 0.5 to 4 mm², or 2x (0.5 to 2.5 mm²) — fine for standard motor leads up to about 4 mm². The screw-type main current circuit is familiar to any panel builder; no special tooling needed. Shock resistance of 15g / 11 ms means it holds up on vibrating conveyor drives.

Carries ATEX protection type PTB 06 ATEX 3001 Ex II (2) GD, so it's rated for use in potentially explosive atmospheres (Zone 2 gas, Zone 22 dust) when paired with an appropriate contactor. Surge voltage resistance is 6 kV, and burst immunity meets IEC 61000-4-4 severity level 3 — 2 kV on power ports, 1 kV on signal ports. That covers most industrial EMC environments without external filtering.

Frequently asked questions

What is the trip class range on this relay?

Trip class is adjustable to 5E, 10E, 20E, or 30E. You set it to match the motor start time without changing the relay.

What is the maximum AC-3 voltage rating?

Rated for AC-3 duty up to 690 V maximum. That covers 400 V and 480 V motor circuits with margin.

Does it have ATEX approval?

Yes, ATEX type PTB 06 ATEX 3001 Ex II (2) GD — suitable for Zone 2 gas and Zone 22 dust atmospheres when used with the correct contactor.
