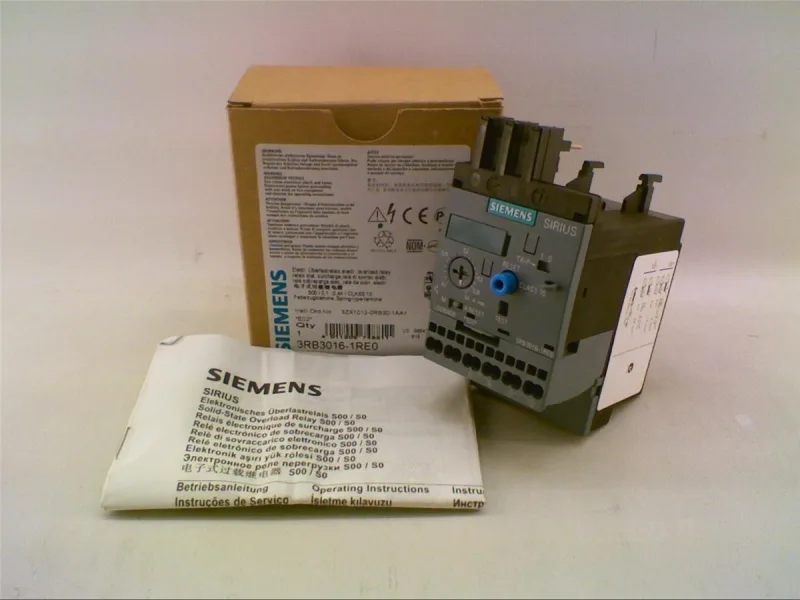

Siemens 3RB3016-1RE0 SIRIUS Solid-State Overload Relay

MPN3RB3016-1RE0

Active

Siemens SIRIUS 3RB3016-1RE0 solid-state overload relay, Size S00, 0.4 A rated operational current, 690 V AC-3e, Class 10E trip class, spring-loaded terminals, contactor-mount.

$48.26Ref. price · indicative, final on quote

Add to RFQ

Siemens 3RB3016-1RE0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RB3016-1RE0 — Identification
Parameter	Value
Product brand name	SIRIUS
Product designation	solid-state overload relay
Frame size (overload relay)	S00
Combinable contactor sizes	S00
Reference code (IEC 81346-2)	F

3RB3016-1RE0 — Protection & Trip
Parameter	Value
Overload current setting range	0.1 ... 0.4 A
Trip class	CLASS 10E
Overload release type	electronic

3RB3016-1RE0 — Electrical (main circuit)
Parameter	Value
Rated operational current	0.4 A
Poles (main circuit)	3
Rated operating frequency	50 ... 60 Hz
Rated insulation voltage (AC, pollution degree 3)	690 V
Rated value (AC-3e), max.	690 V
Rated surge withstand voltage	6 kV
Main current circuit	spring-loaded terminals
Power loss at rated current (hot)	0.1 W
Per pole	0.03 W

3RB3016-1RE0 — Auxiliary contacts
Parameter	Value
Auxiliary contacts: NO	1
Auxiliary contacts: NC	1
Auxiliary contacts: CO (changeover)	0
Auxiliary switch short-circuit protection (required fuse)	fuse gG: 6 A
Switching current at 24 V	2 A
Switching current at 60 V	0.55 A
Switching current at 110 V	0.3 A
Switching current at 120 V	4 A
Switching current at 125 V	0.3 A
Switching current at 220 V	0.11 A
Switching current at 230 V	3 A

3RB3016-1RE0 — Connection & Mounting
Parameter	Value
Mounting / fastening method	Contactor mounting
Mounting position	any
Main-circuit connector arrangement	Top and bottom
Auxiliary/control circuit connection type	spring-loaded terminals
Removable aux./control terminal	Yes
Conductor cross-section: solid	2x (0.25 ... 1.5 mm²)
Conductor cross-section: solid or stranded	2x (0,25 ... 1,5 mm²)
Conductor cross-section: finely stranded with ferrule	2x (0.25 ... 1.5 mm²)
Conductor range (AWG), auxiliary contacts	1x (24 ... 16), 2x (24 ... 16)

3RB3016-1RE0 — Environmental
Parameter	Value
Operating temperature	-25 ... +60 °C
Storage temperature	-40 ... +80 °C
Transport temperature	-40 ... +80 °C
Relative humidity, operating	10 ... 95 %
Max. installation altitude	2 000 m
Shock resistance	15g / 11 ms

3RB3016-1RE0 — Mechanical
Parameter	Value
Width	45 mm
Height	72 mm
Depth	90 mm

Product details

Auxiliary contact ratings and environmental limits

The 3RB3016-1RE0: The integrated auxiliary switch provides signal contacts rated 2 A at 24 V, 4 A at 120 V, and 3 A at 230 V, among other intermediate voltages — per the specification, these cover typical PLC and control transformer interfaces. Shock resistance is 15g / 11 ms per IEC 60068-2-27, with the signaling contact (97/98) rated at 9g / 11 ms in the tripped position. Vibration resistance follows 1-6 Hz at 15 mm and 6-500 Hz at 20 m/s² for 10 cycles.

Dimensions are 45 mm width, 72 mm height, 90 mm depth — fits the standard S00 contactor footprint on DIN rail or direct mounting plate.

Substance prohibitance compliance is documented with a date of 10/01/2009, covering RoHS and REACH requirements for audit purposes.

Frequently asked questions

What compliance documentation does Siemens provide for the 3RB3016-1RE0?

Substance prohibitance is documented per the date 10/01/2009, covering RoHS and REACH compliance. The relay also meets IEC 60068-2-27 for shock and vibration resistance.
