Siemens 3RB3016-2SB0 — Overload Relays

Siemens 3RB3016-2SB0 Solid-State Overload Relay, Class 20E,

MPN3RB3016-2SB0
Active

Siemens SIRIUS solid-state overload relay, 3RB3016-2SB0, Class 20E, 12 A thermal current, 690 V rated, size S00.

$55.88 – $158.58Ref. price · indicative, final on quote
Siemens 3RB3016-2SB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RB3016-2SB0 — Identification
ParameterValue
Product brand nameSIRIUS
Product designationsolid-state overload relay
Frame size (overload relay)S00
Combinable contactor sizesS00
Reference code (IEC 81346-2)F
3RB3016-2SB0 — Protection & Trip
ParameterValue
Overload current setting range3 ... 12 A
Trip classCLASS 20E
Overload release typeelectronic
3RB3016-2SB0 — Electrical (main circuit)
ParameterValue
Rated operational current12 A
Poles (main circuit)3
Rated operating frequency50 ... 60 Hz
Rated insulation voltage (AC, pollution degree 3)690 V
Rated value (AC-3e), max.690 V
Rated surge withstand voltage6 kV
Main current circuitscrew-type terminals
Power loss at rated current (hot)0.6 W
Per pole0.2 W
3RB3016-2SB0 — Auxiliary contacts
ParameterValue
Auxiliary contacts: NO1
Auxiliary contacts: NC1
Auxiliary contacts: CO (changeover)0
Auxiliary switch short-circuit protection (required fuse)fuse gG: 6 A
Switching current at 24 V2 A
Switching current at 60 V0.55 A
Switching current at 110 V0.3 A
Switching current at 120 V4 A
Switching current at 125 V0.3 A
Switching current at 220 V0.11 A
Switching current at 230 V3 A
3RB3016-2SB0 — Connection & Mounting
ParameterValue
Mounting / fastening methodContactor mounting
Mounting positionany
Main-circuit connector arrangementTop and bottom
Auxiliary/control circuit connection typescrew-type terminals
Removable aux./control terminalYes
Conductor cross-section: solid1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)
Conductor cross-section: solid or stranded1x (0,5 ... 4 mm²), 2x (0,5 ... 2,5 mm²)
Conductor cross-section: finely stranded with ferrule1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
Conductor range (AWG), auxiliary contacts1x (20 ... 14), 2x (20 ... 14)
3RB3016-2SB0 — Environmental
ParameterValue
Operating temperature-25 ... +60 °C
Storage temperature-40 ... +80 °C
Transport temperature-40 ... +80 °C
Relative humidity, operating10 ... 95 %
Max. installation altitude2 000 m
Shock resistance15g / 11 ms
3RB3016-2SB0 — Mechanical
ParameterValue
Width45 mm
Height79 mm
Depth73 mm

Product details

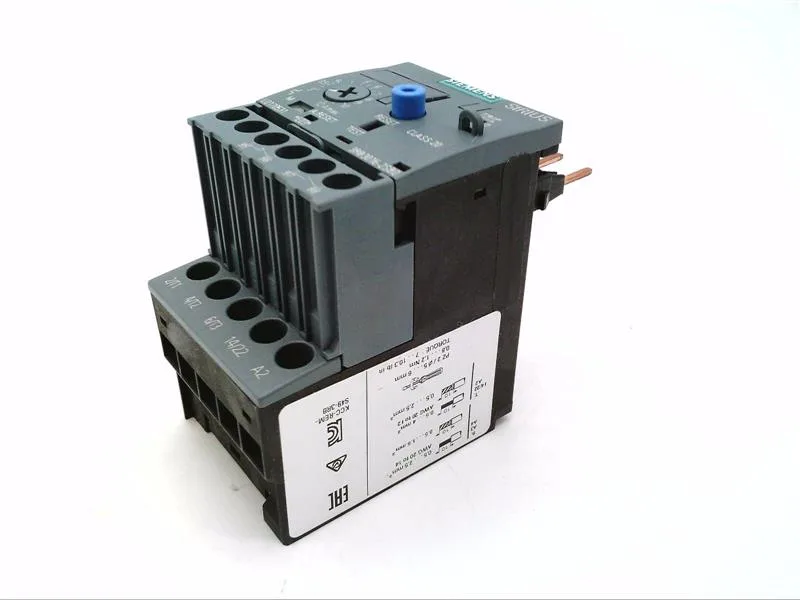

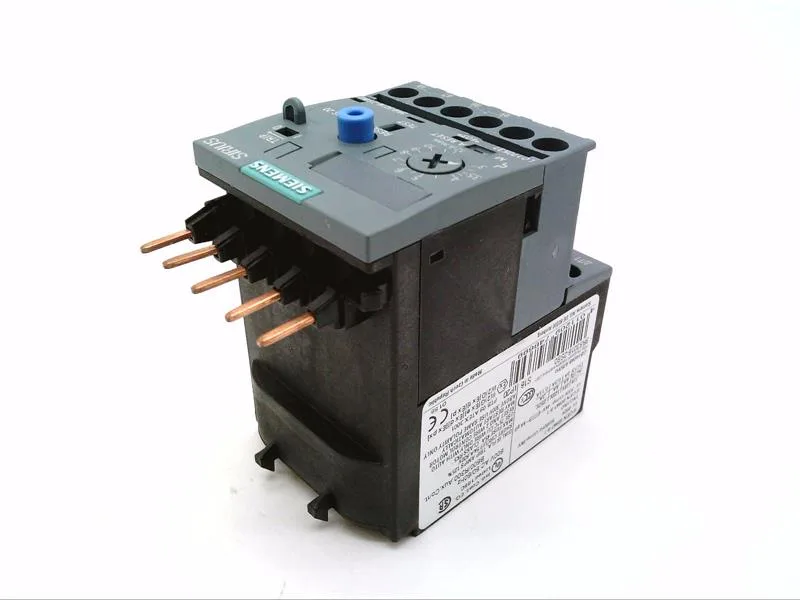

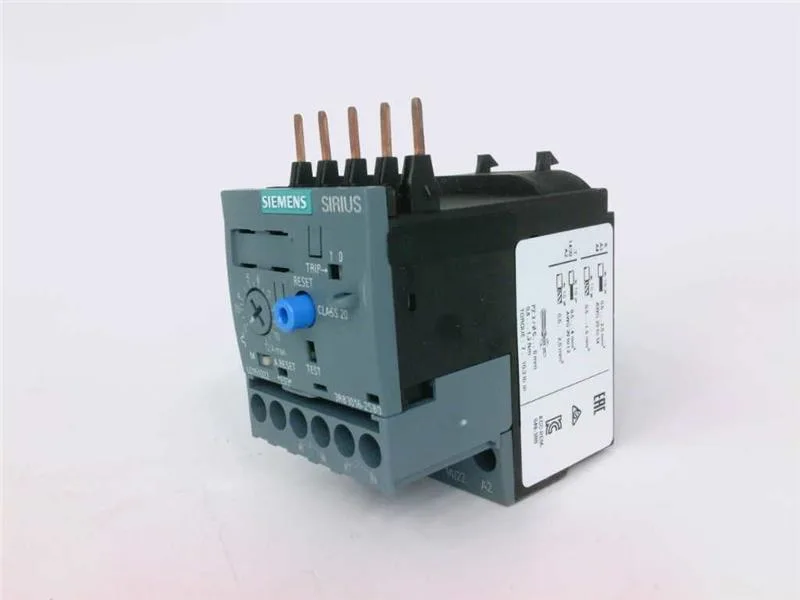

The Siemens 3RB3016-2SB0 is a solid-state overload relay from the SIRIUS product brand, designed for motor protection in size S00 frame. It mounts directly on a contactor and provides an electronic overload release with a Class 20E trip curve, rated for 12 A continuous thermal current at up to 690 V AC-3e. The integrated auxiliary switch includes a signaling contact that operates on a trip condition (labeled "for message tripped").

Fastened by contactor mounting, the relay occupies 45 mm width, 79 mm height, and 73 mm depth. Screw-type terminals accept 1x 0.5-4 mm² or 2x 0.5-2.5 mm² solid or stranded wire. Vibration resistance: 1-6 Hz, 15 mm; 6-500 Hz, 20 m/s². Shock resistance 15g/11 ms (9g/11 ms for signaling contact in tripped position).

Frequently asked questions

What does the note 'for message tripped' refer to?

That note describes the integrated auxiliary switch’s signaling contact which changes state when the relay trips, providing a remote indication.

Does the 3RB3016-2SB0 have RoHS compliance?

The part carries a substance prohibitance date of 2009, indicating it meets substance restrictions consistent with RoHS directives.
