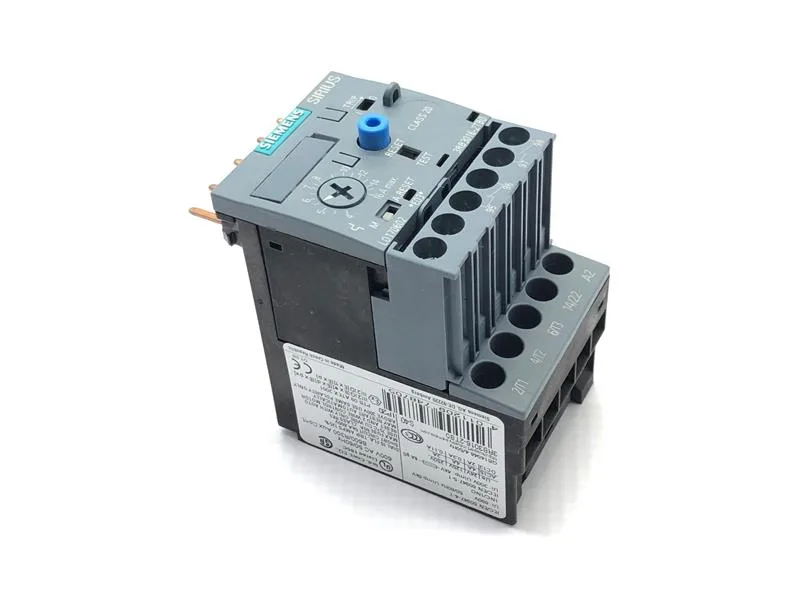

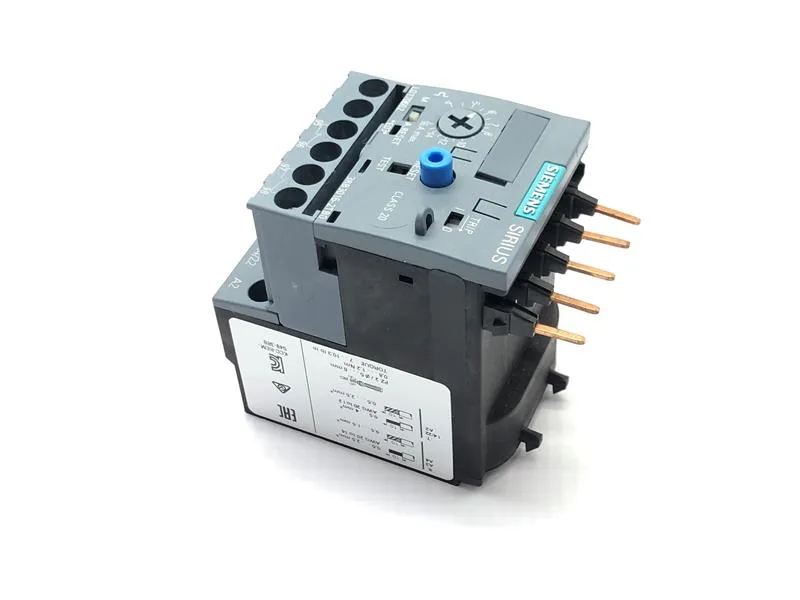

The Siemens 3RB3016-2TB0 is a SIRIUS solid-state overload relay, size S00, rated for 16 A thermal current (Ith) at up to 690 V. It's an electronic overload release with CLASS 20E trip characteristics — meaning it'll let a motor draw six times rated current for about 20 seconds before tripping, which is the standard curve for standard-start induction motors driving pumps, fans, or conveyors.
Mounts directly to a contactor — no DIN rail needed. The S00 frame size keeps it compact at 45 mm wide, 79 mm tall, and 73 mm deep. Terminals accept 1x (0.5 to 4 mm²) or 2x (0.5 to 2.5 mm²) solid or stranded wire. Screw terminals on the main circuit, Pozidriv PZ2 driver required.
Signaling and Auxiliary Contacts
The integrated auxiliary switch provides a dedicated signaling contact for the "tripped" message. Contact ratings: 2 A at 24 V, 4 A at 120 V, 3 A at 230 V, and 0.3 A at 125 V. That covers direct connection to a PLC input or a pilot light without an interposing relay in most cases. The signaling contact has its own shock rating — 9g / 11 ms in the tripped position, slightly lower than the main body's 15g / 11 ms, so keep that in mind for high-vibration environments.
