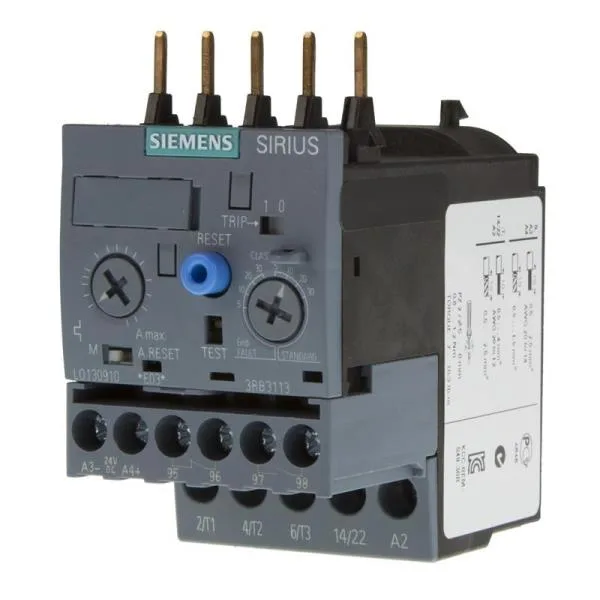

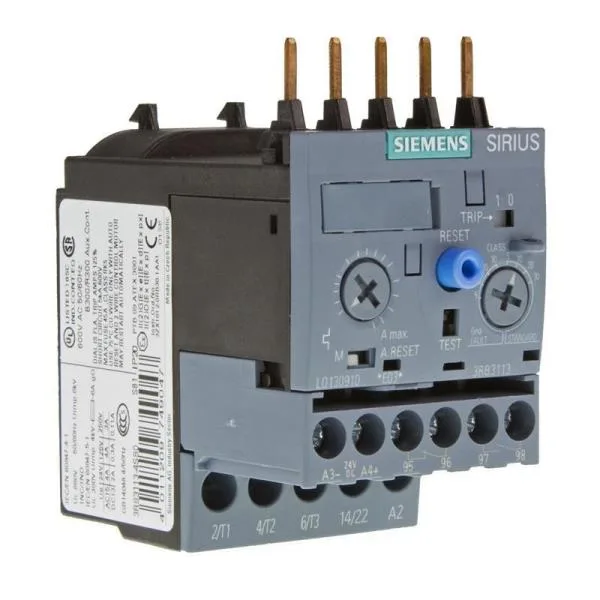

3RB3113-4SB0 SIRIUS solid-state overload relay, adjustable t
Siemens SIRIUS 3RB3113-4SB0 solid-state overload relay, size S00, 12 A thermal current, adjustable trip classes 5E/10E/20E/30E, screw terminals.
Specifications
| Parameter | Value |
|---|---|
| Product brand name | SIRIUS |
| Product designation | solid-state overload relay |
| Frame size (overload relay) | S00 |
| Combinable contactor sizes | S00 |
| Reference code (IEC 81346-2) | F |
| Parameter | Value |
|---|---|
| Overload current setting range | 3 ... 12 A |
| Trip class | CLASS 5E, 10E, 20E and 30E adjustable |
| Overload release type | electronic |
| Parameter | Value |
|---|---|
| Rated operational current | 12 A |
| Poles (main circuit) | 3 |
| Rated operating frequency | 50 ... 60 Hz |
| Rated insulation voltage (AC, pollution degree 3) | 690 V |
| Rated value (AC-3e), max. | 690 V |
| Rated surge withstand voltage | 6 kV |
| Main current circuit | screw-type terminals |
| Power loss at rated current (hot) | 0.6 W |
| Per pole | 0.2 W |
| Parameter | Value |
|---|---|
| Auxiliary contacts: NO | 1 |
| Auxiliary contacts: NC | 1 |
| Auxiliary contacts: CO (changeover) | 0 |
| Auxiliary switch short-circuit protection (required fuse) | fuse gG: 6 A |
| Switching current at 24 V | 2 A |
| Switching current at 60 V | 0.55 A |
| Switching current at 110 V | 0.3 A |
| Switching current at 120 V | 4 A |
| Switching current at 125 V | 0.3 A |
| Switching current at 220 V | 0.11 A |
| Switching current at 230 V | 3 A |
| Parameter | Value |
|---|---|
| Mounting / fastening method | Contactor mounting |
| Mounting position | any |
| Main-circuit connector arrangement | Top and bottom |
| Auxiliary/control circuit connection type | screw-type terminals |
| Removable aux./control terminal | Yes |
| Conductor cross-section: solid | 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²) |
| Conductor cross-section: solid or stranded | 1x (0,5 ... 4 mm²), 2x (0,5 ... 2,5 mm²) |
| Conductor cross-section: finely stranded with ferrule | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²) |
| Conductor range (AWG), auxiliary contacts | 1x (20 ... 14), 2x (20 ... 14) |
| Parameter | Value |
|---|---|
| Operating temperature | -25 ... +60 °C |
| Storage temperature | -40 ... +80 °C |
| Transport temperature | -40 ... +80 °C |
| Relative humidity, operating | 10 ... 95 % |
| Max. installation altitude | 2 000 m |
| Shock resistance | 15g / 11 ms |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 79 mm |
| Depth | 73 mm |
Product details
Frequently asked questions
What is the depth of the 3RB3113-4SB0?
The depth is 73 mm, as listed in the dimensions.
Will 3RB3113-4SB0 drop into a panel designed for 3RB3133-4UB0 without rewiring?
No. The 3RB3113-4SB0 uses the S00 frame (45×79×73 mm), while the 3RB3133-4UB0 uses the larger S0 frame. The mounting footprint, contactor base, and main power terminal spacing differ, so a direct drop-in is not possible without modifying the wiring and mechanical layout.
Frame size matters: S00 vs S0 sibling
The 3RB3113-4SB0: The S00 frame measures 45 mm wide × 79 mm high × 73 mm deep. It mounts directly onto a contactor of matching S00 frame size.
The relay fastens via contactor mounting — no separate DIN rail clip; it attaches directly to the S00 contactor base. The screw-type terminals for the main circuit accept solid or stranded wire: 1× (0.5–4 mm²) or 2× (0.5–2.5 mm²). Auxiliary and control terminals use the same cross-section range. The recommended screwdriver tip is Pozidriv PZ2 with a shaft diameter of 5–6 mm. Mounting position is any, so the orientation is not constrained. Each pole dissipates 0.2 W at rated current, which is negligible for thermal derating in a closed panel. The tripped signaling contact (97/98) has a separate shock rating of 9 g / 11 ms — if the relay is wired to report a trip to a PLC, verify the signal contact can tolerate the panel's vibration environment.
