Siemens 3RF2310-1AA24 — Solid State Relays

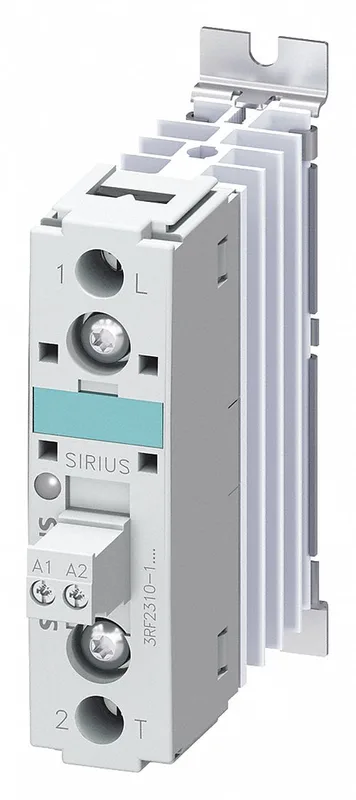

Siemens 3RF2310-1AA24 SIRIUS Solid-State Contactor, 10.5 A A

MPN3RF2310-1AA24
Active

Siemens SIRIUS 3RF2310-1AA24, single-phase solid-state contactor, 10.5 A AC-51, 48-460 VAC load, 110-230 VAC control, 22.5 mm width, screw terminals, DIN rail mount.

$194.35Ref. price · indicative, final on quote
Siemens 3RF2310-1AA24 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RF2310-1AA24 — Identification
ParameterValue
Product designationsolid-state contactor
3RF2310-1AA24 — Contacts & Poles
ParameterValue
Main circuit poles1
Main NO contacts (count)1
Auxiliary NO contacts (count)0
Auxiliary NC contacts (count)0
3RF2310-1AA24 — Coil
ParameterValue
Control supply voltage typeAC
3RF2310-1AA24 — Timing
ParameterValue
ON-delay time40 ms; additionally max. one half-wave
OFF-delay time40 ms; additionally max. one half-wave
3RF2310-1AA24 — Connection & Mechanical
ParameterValue
Fastening / mounting methodscrew fixing and snap-on mounting on standard mounting rail 35 mm according to IEC 60715

Product details

The Siemens 3RF2310-1AA24 is a SIRIUS-brand single-phase solid-state contactor rated 10.5 A in AC-51 duty (resistive loads) and 9.6 A per UL 508. It switches loads from 48 to 460 VAC at 50/60 Hz, with zero-point switching to reduce inrush and EMI on heater or lamp banks. The control circuit accepts 110-230 VAC and draws 15 mA — a standard signal for most PLC or relay outputs.

Width is 22.5 mm — one standard module slot. Main circuit terminals accept 1.5-6 mm² stranded or 2x (14-10) AWG; control terminals take 0.5-2.5 mm² solid or 2x 0.5-1.0 mm². Side-by-side mounting is allowed with no derating up to 40 °C.

Frequently asked questions

How do I get current pricing and availability for 3RF2310-1AA24?

Submit an RFQ through this listing; pricing and stock are confirmed at quote time through independent distribution channels.

What is the 3RF2310-1AA24's AC-51 current rating?

It is rated 10.5 A in AC-51 duty (resistive loads), with a UL 508 rating of 9.6 A.

What control voltage does this solid-state contactor need?

The control circuit accepts 110-230 VAC at 50/60 Hz, drawing 15 mA.

What compliance documentation does Siemens provide for 3RF2310-1AA24?

The part carries a substance prohibition date of 05/28/2009, indicating RoHS compliance. It is designed to insulation voltage 600 V and pollution degree 3, meeting IEC and UL standards.
