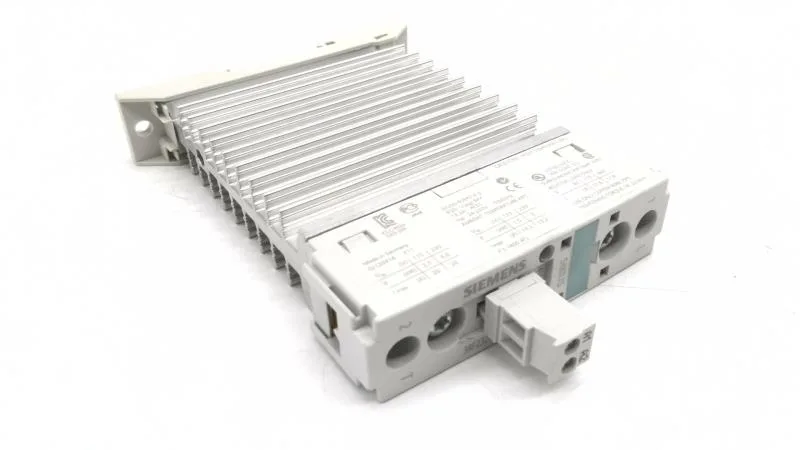

Siemens 3RF2320-1AA02-0KN0
MPN3RF2320-1AA02-0KN0
Active
Solid-state contactor 1-phase 3RF2 AC 51 / 20 A / 40 °C 24-230 V / 24 V DC LP screw terminal Low power consumption
$39.37Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product designation | solid-state contactor |
| Parameter | Value |
|---|---|
| Main circuit poles | 1 |
| Main NO contacts (count) | 1 |
| Auxiliary NO contacts (count) | 0 |
| Auxiliary NC contacts (count) | 0 |
| Parameter | Value |
|---|---|
| Control supply voltage type | DC |
| Parameter | Value |
|---|---|
| ON-delay time | 1 ms; additionally max. one half-wave |
| OFF-delay time | 1 ms; additionally max. one half-wave |
| Parameter | Value |
|---|---|
| Fastening / mounting method | screw fixing and snap-on mounting on standard mounting rail 35 mm according to IEC 60715 |
MPN
3RF2320-1AA02-0KN0
