Siemens 3RF2450-1AC45 — Solid State Relays

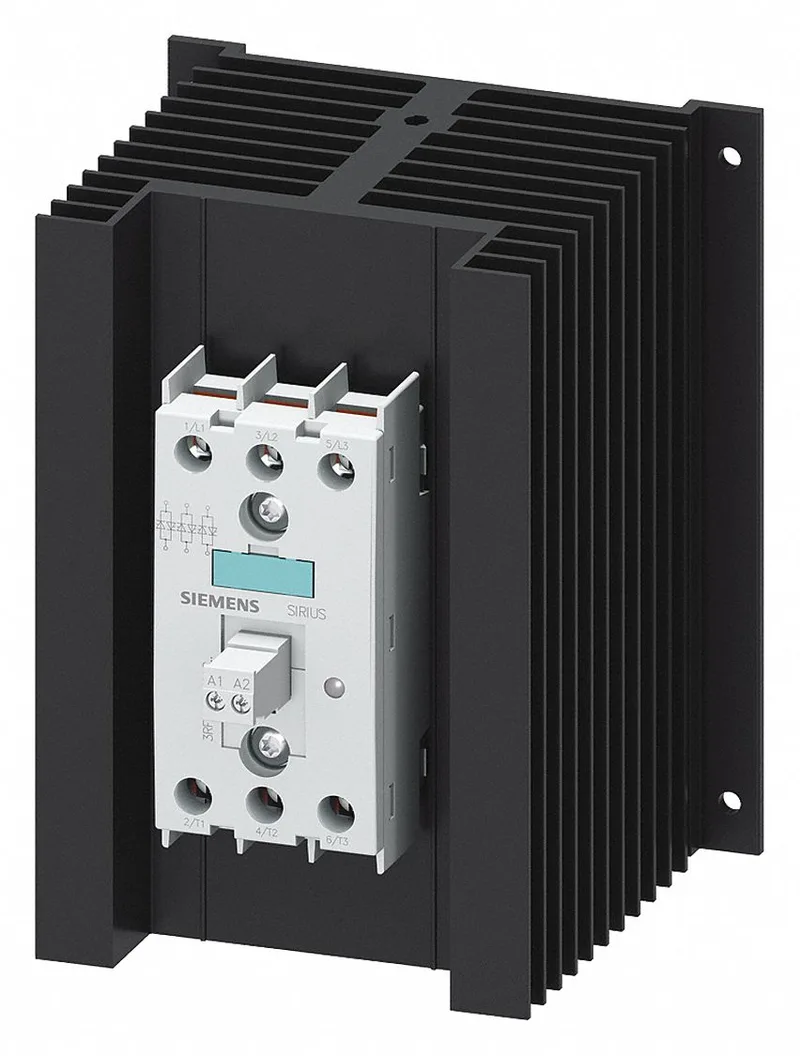

Siemens 3RF2450-1AC45 SIRIUS Solid-State Contactor, 50 A AC-

MPN3RF2450-1AC45
Active

Siemens SIRIUS 3RF2450-1AC45, three-phase solid-state contactor, 50 A AC-51, zero-point switching, 48-600 VAC 50/60 Hz, screw terminals.

$428.43 – $761.32Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RF2450-1AC45 — Identification
ParameterValue
Product designationsolid-state contactor
3RF2450-1AC45 — Contacts & Poles
ParameterValue
Main circuit poles3
Main NO contacts (count)3
Auxiliary NO contacts (count)0
Auxiliary NC contacts (count)0
3RF2450-1AC45 — Coil
ParameterValue
Control supply voltage typeDC
3RF2450-1AC45 — Timing
ParameterValue
ON-delay time1 ms; additionally max. one half-wave
3RF2450-1AC45 — Connection & Mechanical
ParameterValue
Fastening / mounting methodscrew fixing

Product details

The Siemens 3RF2450-1AC45 is a SIRIUS three-phase solid-state contactor with zero-point switching, rated 50 A in AC-51 duty (resistive loads) and 38 A per UL 508. It switches 48–600 VAC at 50/60 Hz, with a minimum operational current of 500 mA — so it handles everything from small heater banks up to 50 A resistive loads without the contact wear of a mechanical relay.

Mounts via screw fixing (no DIN-rail clip), sized 150 mm high × 119.5 mm wide × 130 mm deep — plan for a fixed backplate or sub-panel. Main circuit terminals accept 1.5–6 mm² solid/stranded (or 2× 14–10 AWG), control terminals take 0.5–2.5 mm² solid. Side-by-side mounting is allowed, but watch the derating above 40 °C ambient; the 50 A AC-51 rating holds at 40 °C, above that you'll need to space or reduce load.

Frequently asked questions

What are the key ratings for this solid-state contactor?

AC-51 resistive load rating is 50 A; UL 508 rating is 38 A. It switches 48–600 VAC at 50/60 Hz, with a minimum load of 500 mA. The I²t maximum is 6,600 A²·s, and the ON-delay is 1 ms plus one half-wave maximum.

What compliance documentation is available for this part?

The part carries a substance prohibition date of 07/01/2006 (RoHS compliance marker). Insulation voltage is rated 600 V, pollution degree 3. Approvals include UL and CSA via the UL 508 listing.
