Siemens 3RG4011-0CC05 — Proximity Sensors

Siemens 3RG4011-0CC05 Inductive Sensor, PNP, 1.5 mm, IP67

MPN3RG4011-0CC05
End of Life

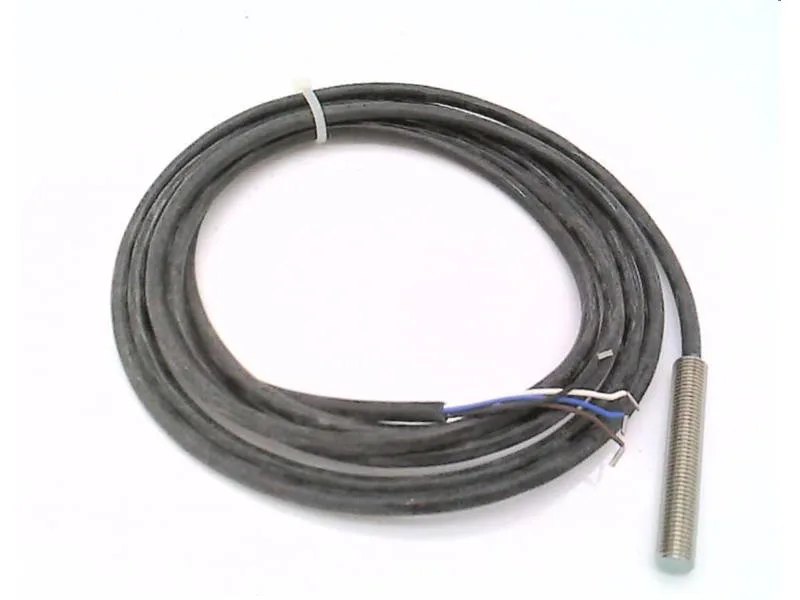

Siemens 3RG4 series inductive proximity sensor, flush-mount 8 mm barrel, PNP NO+NC, 1.5 mm sensing range, 2 m cable, IP67, end-of-life status.

$153.14Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3RG4011-0CC05 — Identification
ParameterValue
Series3RG4
3RG4011-0CC05 — Other specifications
ParameterValue
Weight60
IP ratingIP67
Product typeINDUCTIVE SENSOR
MountingFlush-mountable
Connector_typeCable, 2 m
Supplied_items2 lock nuts
Housing_material8, 50 mm
Supply voltage30
Electrical designPNP
Switching current0.05
Switching_output_typeNormally open + Normally closed
Sensing distance max1.5

Product details

The Siemens 3RG4011-0CC05 is an 8 mm barrel inductive proximity sensor from the 3RG4 series, flush-mountable with a 1.5 mm sensing distance. It switches PNP, normally-open plus normally-closed, and runs on 10–30 V DC. The 2 m cable and IP67 rating suit it for washdown zones on packaging or material-handling lines — the housing is stainless steel, so it holds up in wet or mildly corrosive environments.

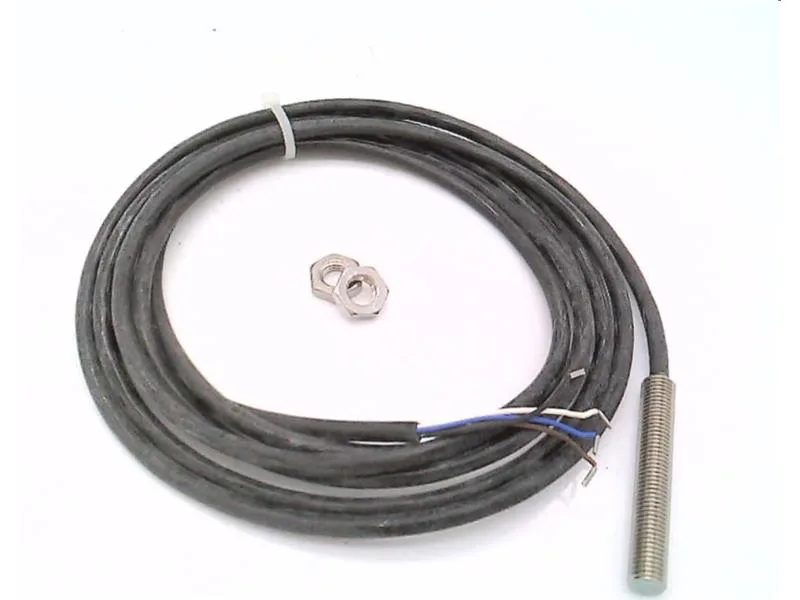

Flush-mount into an 8 mm hole — the supplied lock nuts secure it. The stainless barrel and IP67 seal mean it survives washdown cycles without potting issues. PNP output with complementary NO/NC gives flexibility for fail-safe wiring: use the NC leg for a break-wire detection loop. The 50 mA switching current covers direct PLC inputs; no relay interposer needed.

Frequently asked questions

Will 3RG4011-0CC05 drop into a panel specified around 3RG40110CC05?

Yes — 3RG40110CC05 is the same part number without the hyphen. Same 8 mm barrel, same 1.5 mm flush-mount sensing range, same PNP NO+NC output, same 2 m cable. No rewiring needed.

What is the sensing range and output type?

1.5 mm flush-mount, PNP with complementary normally-open and normally-closed outputs. Supply is 10–30 V DC; switching current is 50 mA.
