Siemens 3RG4013-0AB00 — Proximity Sensors

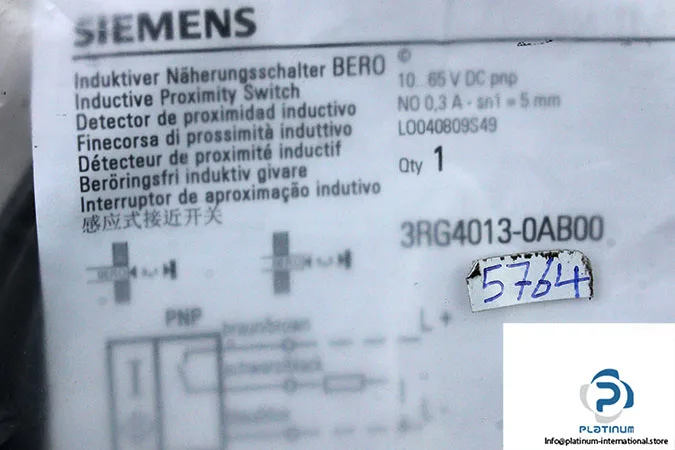

Siemens 3RG4013-0AB00 Inductive Sensor, 5 mm Range

MPN3RG4013-0AB00
End of Life

Siemens 3RG4013-0AB00 inductive sensor, 5 mm sensing range, 0.11 kg, end-of-life (EOL).

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3RG4013-0AB00 — Specifications
ParameterValue
Model3RG4013-0AB00
Weight0,11 kg
ConditionNew
Shelf no.231205
Sensing distance5 mm
Type of productInductive Sensor

Product details

It's a straightforward replacement part for a panel that already uses this form factor — but the lifecycle status changes the sourcing posture.

Fit and signal considerations

At 5 mm nominal sensing range, this sensor is sized for close-proximity detection of metal objects — think cam followers, valve positions, or part-present on a conveyor. The inductive principle means it's immune to dust and non-metallic debris, but it's still noise till proven otherwise: run the cable shielded and grounded at the controller end, especially if there's a VFD in the same panel. The short range keeps false triggers down, but it also means the target gap needs to be tight and repeatable.

Frequently asked questions

What is the sensing range of the 3RG4013-0AB00?

5 mm, rated for ferrous targets. Non-ferrous metals will reduce the effective range.
