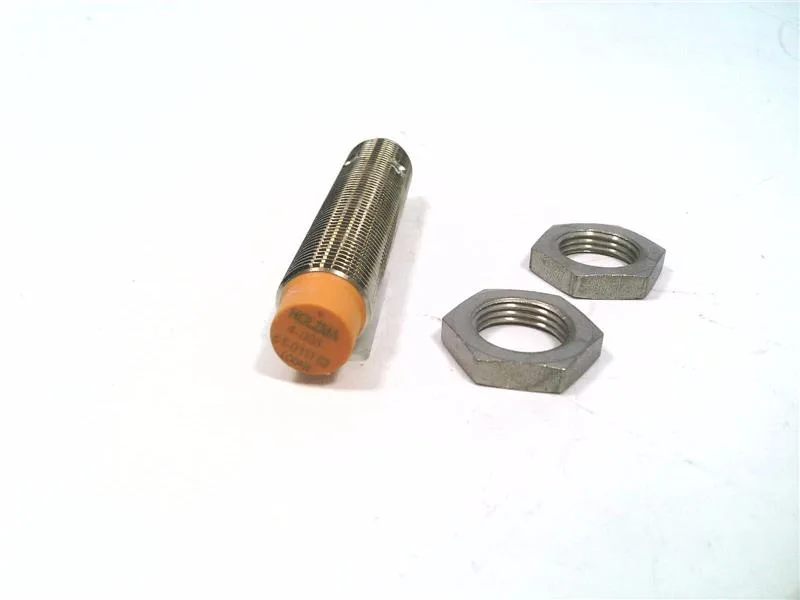

The Siemens 3RG4022-3AG01 is an M12 inductive proximity switch in a metal barrel, rated for 4 mm flush sensing on mild steel (standard target 12 x 12 x 1 mm). PNP normally-open output, 24 V DC supply, and an M12 connector body. Effective operating distance spans 3.6 to 4.4 mm over the -25 to 85°C range.
Siemens 3RG4022-3AG01 Inductive Sensor, M12, PNP NO, 4 mm
MPN3RG4022-3AG01
End of Life
Siemens 3RG4022-3AG01 inductive proximity switch, M12 metal housing, PNP normally open, 4 mm sensing range, 24 V DC.
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Inductive Sensor |
| Parameter | Value |
|---|---|
| Switching output | Normally open |
| Parameter | Value |
|---|---|
| Housing material | Metal |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 … 85°C |
| Parameter | Value |
|---|---|
| Model | 3RG4022-3AG01 |
| Weight | 0,03 kg |
| Condition | New |
| Shelf no. | 240605 |
| Dimensions | M12 |
| Sensing distance | 4 mm |
| Connector type | M12 Connector |
| Type of product | Inductive Sensor |
| Electrical design | PNP |
| Operating voltage | 24 V DC |
| Standard target mild steel | 12 x 12 x 1 mm |
| Effective operating distance | 3,6 … 4.4 mm |
Product details
Frequently asked questions
What voltage does it run on?
24 V DC. The description also notes a 10-30 VDC range, so it will operate on nominal 24 V systems.
